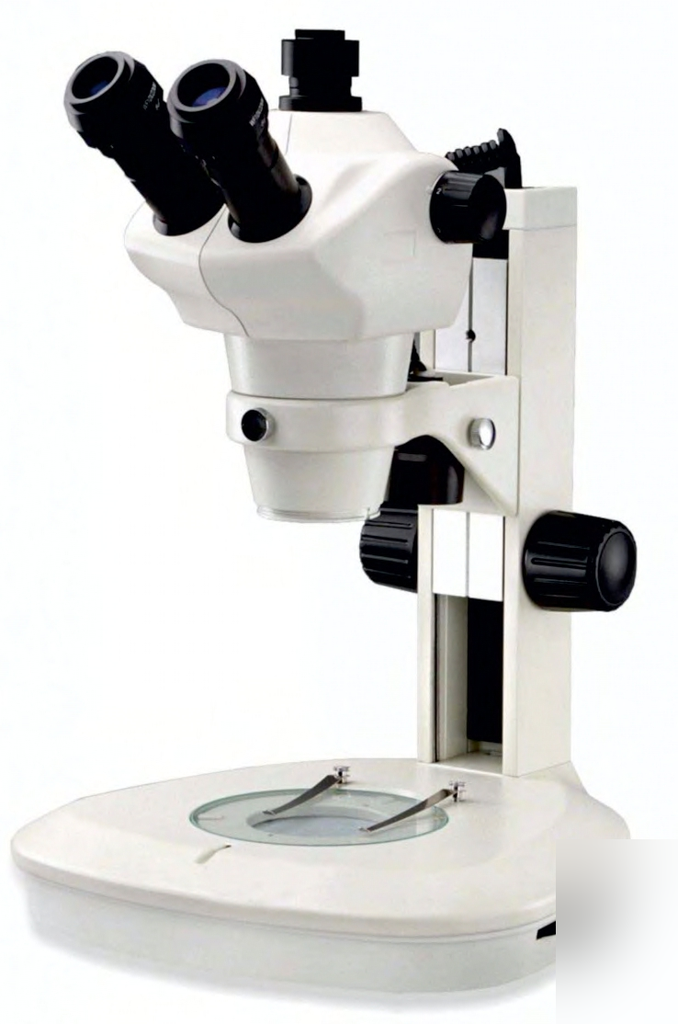

ADVANCED TRINOCULAR
AJKANT Overseas manufactures premium international-grade ADVANCED TRINOCULAR designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | AJK-TSZ-3 |
|---|---|
| Trinocular Observation Head | - Galileo optical system left & right parallel optical path - Observation head inclined from 45° - Vertical tube for micro photography - Diopter adjustment ring on ocular tube - Interpupillary distance from 55mm to 75mm |
| Eyepiece | Wide field 10X (Paired) F.O.V. 22mm |
| Zooming Range & Ratio | Zoom 0.6X to 5.1X with magnification ratio of 1:7:8 |
| Mechanical Body | - Track stand with Fan type base - Base Size is 330mm X 300mm - Clip for holding specimen - Lateral zoom control movement - On/off switch to provide flexibility to use either both light or any of them |
| Magnification Range | 6.5X to 5.5X |
| Working Distance | 110 mm |
| Standard Accessories | Operating manual, dust cover, guarantee card & Styrofoam molded pack |
| Illumination System | - Incident and transmitted light system with LED lamp - The system regulated with transformer has intensity control knob |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the ADVANCED TRINOCULAR is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every ADVANCED TRINOCULAR is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the ADVANCED TRINOCULAR. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
