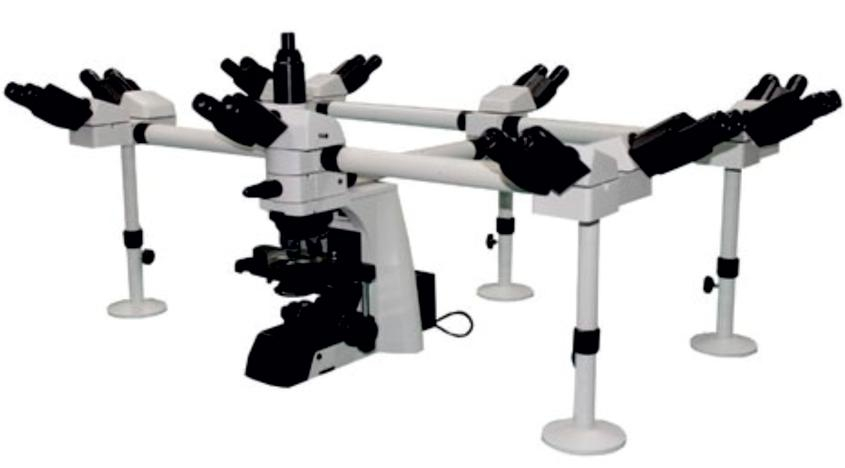

DECA HEAD MICROSCOPE
AJKANT Overseas manufactures premium international-grade DECA HEAD MICROSCOPE designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No AJK-DECCAN-10 | |
|---|---|
| Mechanical Body | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Trinocular Head | - Sidentopf trinocular observation head inclined at 30° rotatable at 360° (One set) - Vertical focusable photo tube for photo micrography |
| Binocular Head | - Binocular observation heads, inclined at 30° rotatable at 360° (Nine set) - Diopter adjustment ring on ocular tube (±5) - Interpupillary distance from 47mm to 78mm. (Optional tilting observation head angle 5°-35° |
| Pointer | Dual LED pointer focusable with light intensity control and choise of either Red or Green |
| Eyepiece | Extra wide field 10x (Paired) FOV 25mm Ocular dia 30mm |
| Nosepiece | Reverse angle sextuple nospiece with slot for polarizer |
| - Infinite corrected anti fungal & anti mold | |
| Objectives (infinity Corrected) | - Infinity CCIS Color Corrected Achromatic 2x, 4x, 10x, 20x, 40x (SL),100x Oil (SL) |
| Mechanical Stage | Mechanical stage size 187x167mm and heaving low positioned co-axial controls on ball bearing guide ways with capacity to hold two glass slide at time |
| Focusing | - Co-axial focusing control with large knob, pre focusing leaver and tension adjustment ring - Fine Div 0.001mm, Coarse stroke 35mm per rotation, fine stroke 0.1mm/rotation - Moving range 78mm x 54mm per rotation - Upper limit stoper is provided |
| Condenser | sub stage swing out front lens, Abbe condenser N.A 0.9/1.25, Filter holder and iris diaphragm |
| Illumination | - Kohler illumination system with 12V-100W Halogen external illuminator - Aspherical collector - Brightness control knob. Optional 3W LED Available |
| Standard Accessories | 12V/100W halogen tungsten bulb, dust cover, blue filter, manual and packed in styrofoam box |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the DECA HEAD MICROSCOPE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every DECA HEAD MICROSCOPE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the DECA HEAD MICROSCOPE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
