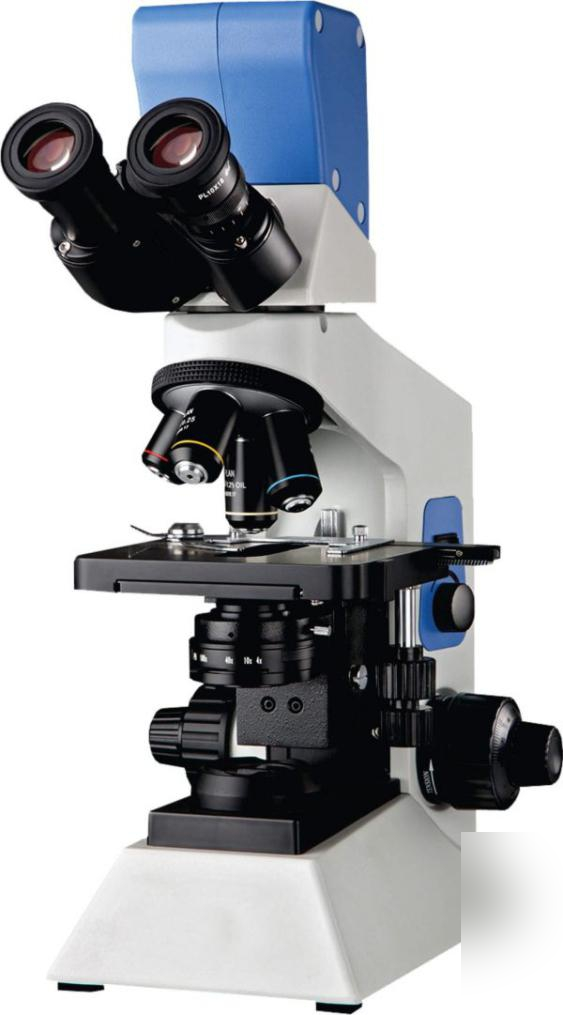

DIGITAL MICROSCOPE
AJKANT Overseas manufactures premium international-grade DIGITAL MICROSCOPE designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No DM-ALPHA | |
|---|---|
| Mechanical body | - Single mould sturdy stand with anti rust materials - Extended base for better quality |
| Observation Head | - Siedentopf Binocular observation head inclined at 30º rotatable at 360º - Inter pupillary distance adjustable between 55-75mm - Diopter adjustment ring on ocular provides correction for eye acuity |
| - Inter pupillary distance adjustable between 55-75m - Diopter adjustment ring on ocular provides correctio | |
| Camera | - Built-in head digital board camera with sensor of 3.1 Mega pixel, Size ½ inch - Resolution: 2048×1536. USB 2.0 output |
| Eyepiece | Extra wide field eyepiece 10x (PAIRED) FOV 18mm |
| - Reverse angle quadruple nose piece resolves on ball positive indexing | |
| Nosepiece | - |
| Objective | 4x, 10x, 40x (SL), CCIS E-Plan Achromatic 100x Oil (SL) |
| Stage | - Size 145x140mm, supported on ball bearing guide ways and having low positioned co-axial controls for stage movement - Cross movement range 50X30mm |
| Focusing | - Co-axial focusing control with ball bearing guide ways and large knob, per focusing lever & tension adjusting ring - The slow motion has 1DIV=0.002mm |
| Condenser | Sub stage Abbe condenser NA 1.25 having a spherical lens adjustable iris diaphragm and swing out filter holder |
| Illumination | Incorporates 3W LED lamp with adjustable iris diaphragm |
| Packing | Blue filter, dust cover, operating manual, Styro Foam molded pack |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the DIGITAL MICROSCOPE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every DIGITAL MICROSCOPE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the DIGITAL MICROSCOPE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
