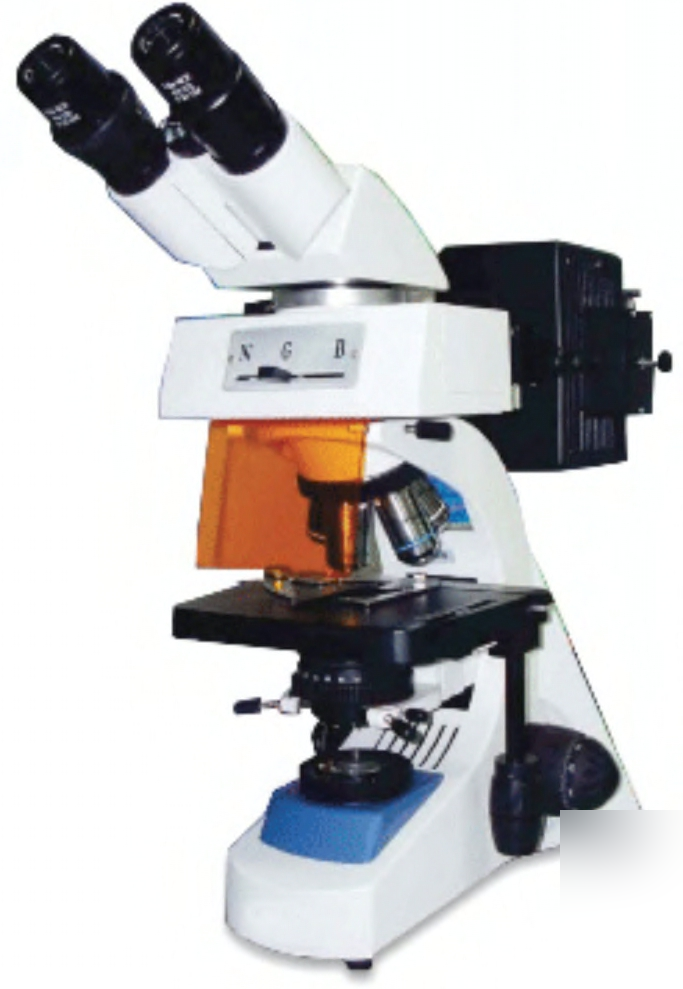

EPI- FLUORESCENCE MICROSCOPE
AJKANT Overseas manufactures premium international-grade EPI- FLUORESCENCE MICROSCOPE designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | |
|---|---|
| AJK-EFN-2 | |
| Stand | Stable & Sturdy stand with well-contoured modular base, corrosion resistant paint, anti-fungus treated |
| - Siedentopf Binocular observation head inclined at 30o and 360o Diopter adjustment ring on ocular tube - Interpupillary distace from 53 to 75mm | |
| Observation Head | - Siedentopf Binocular observation head inclined at 30 a adjustment ring on ocular tube |
| Eyepiece | Wide Field Eyepiece 10x (Paired) FOV 20mm anti-fungal and with eye guards |
| Nosepiece | - Reverse angle quadruple (4-position) nosepiece revolves on ball bearing (tilted backwards) - Soft rubber knurled grip on nosepiece |
| Plan Achromatic | Plan objective 4x/ 0.10, 10x/ 0.25, 40x/ 0.65, 100x/ 1.25 |
| Objectives | - |
| Focusing | Low position co-axial coarse and fine focusing control on ball bearing guide ways with pre focusing lever & tension adjustment ring |
| Condenser | Substage ABBE condenser centerable, NA 0.9/1.25 with aspheric lens |
| EPI Fluorescent Attachment | - The Epi-illumination is through 100 Watt High pressure Mercury Lamp in a Lamphouse attached to the Fluorescenc Filter Block - The exciting light spectrum range is 350mm – 580mm - The Fluorescent light spectrum range 420mm – 650mm - Two exciting light waves B (blue light) and G (green light) - Comprising of : Exciting filter (EX) comprising of –Blue light, Green Light - Color Separation Prism (DM) comprising of – Blue Light, Green Light - Position of ordinary transmission light (Central) |
| Illumination | - Illumination Box with LED lamp, Power Supply Unit 220 Volt & HBO, Super High – pressured Spherical mercury vapor lamp 100W - Orange colored Plastic screen to safeguard the Operator from UV light |
| Power | Universal power supply (AC input 85V~265V, 50/60 Hz) |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the EPI- FLUORESCENCE MICROSCOPE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every EPI- FLUORESCENCE MICROSCOPE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the EPI- FLUORESCENCE MICROSCOPE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
