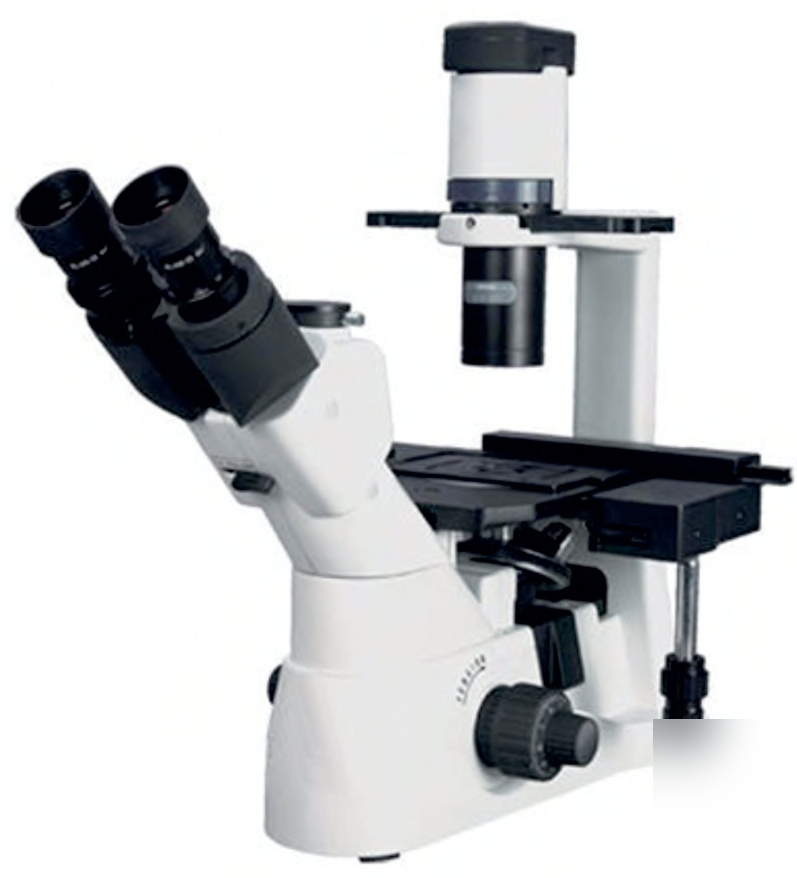

INVERTED TISSUE CULTURE
AJKANT Overseas manufactures premium international-grade INVERTED TISSUE CULTURE designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No ITC-PRIMA | |
|---|---|
| Optical System | Infinity corrected optics |
| - Compensation Free Trinocular Head, Inclined 45° - Trinocular port for attachment of camera via adaptor containing 0.5X to 0.63X relay lens along | |
| Viewing Head | - Trinocular port for attachment of camera via adaptor |
| Nosepiece | Quadruple/Quintuple precision revolving nosepiece |
| Eyepiece | AJK-WF-10× eyepieces having field of view 20-22mm |
| Focusing | Co-axial coarse and fine focus knobs ergonomically po |
| - Long working distance plan achromatic objectives: 4/5X, 10X (phase contrast) 20X (phase contrast) 40X (s) - All objectives is compatible for phase contrast as well as bright field microscopy | |
| Objective | 20X (phase contrast) 40X (s) |
| Mechanical Stage | - Double layer mechanical stage Stage Size: 242mm×172mm Central stage: 110mm Range: 75mm×40mm with optional attachments to accommodate different samples viz., large tissue culture flask , petri dishes, micro titer plates - Mechanical stage for left or right hand operation with object guide for an adjustable XY & Universal holding frame |
| Condenser | N.A.0.3 Abbe Condenser with iris diaphragm, Working Distance:70-187mm in presence of filter slider and phase slider |
| Focusing | - Co-axial focusing control with ball bearing guide ways and large knob, per focusing lever & tension adjusting ring - The slow motion has 1DIV=0.002mm |
| Optional Accessories | Bright field |
| Power | 220-230v 50-60Hz CE certified |
| Standard Accessories | Dust cover, instruction manual |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the INVERTED TISSUE CULTURE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every INVERTED TISSUE CULTURE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the INVERTED TISSUE CULTURE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
