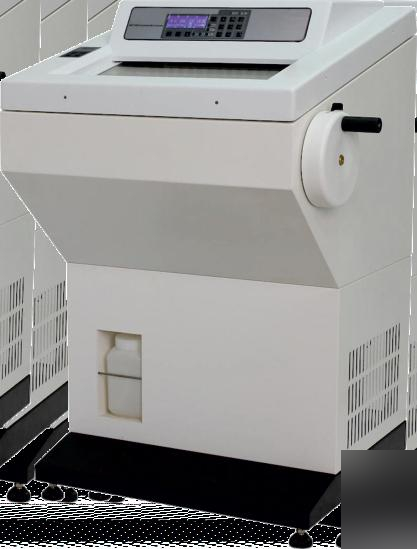

MANUAL CRYOSTAT MICROTOME
Manual Cryostat Microtome is a high-performance equipment with a retraction mechanism that enables consistently accurate, frozen tissue sectioning in diagnostic and research laboratories. It has motorised specimen advance and sectioning with optional disposable blade holder with anti roll device. Microtome is most commonly utilized in histopathological laboratories for cutting thin sections of tissues when fast processing is required. Ÿ Motorized Feed Drive Ÿ Dual Compressor for rapid freezing Ÿ Arbitrary Switching between trimming & Sectioning Ÿ Adjustable cutting angle
Salient Features
- Technical Specifications:
Technical Specifications & Models
| Model No. AJK-MSTAT-3 | |
|---|---|
| Section Thickness Range | 1µm-60µm |
| Setting Values | 1µm-10µm in 1µm, 10µm-20µm in 2µm, 20µm-60µm in 5µm increments |
| Trimming Thickness Range | 10µm-100µm in 10 µm increments |
| Sectioning Speed Low | Adjustable |
| Motorized coarse feed | 480 µm/sec |
| Cryo Chamber Temp | -1 to -30o C Adjustable |
| Cooling Downtime | -30o C |
| Max. Specimen size | 35x35mm |
| Quick Freeze Shelf | < – 50o C |
| Chamber Defrosting | Programmable or manual |
| Lowest Temp. of Pettier Unit | – 50o C |
| No. of Freezing Stations | 10 |
| Voltage | 220V |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the MANUAL CRYOSTAT MICROTOME is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every MANUAL CRYOSTAT MICROTOME is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the MANUAL CRYOSTAT MICROTOME. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
