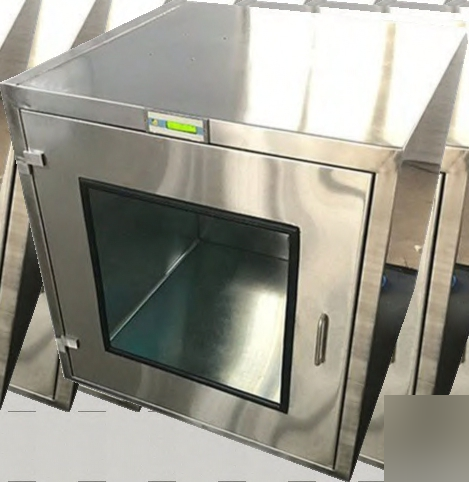

PASS BOX STATIC & DYNAMIC
Pass box is one of the cleanroom systems, which is used to transfer materials from one side to other side through controlled environment in order to avoid airborne cross contamination. As the name states itself, the primary and only work of a pass box is to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation. Interlocking door mechanism is the prime feature of a pass box, when door at one side is open the door at other side remains closed. It is popular with other names such as cleanroom pass through, clean transfer window and transfer hatch;
Salient Features
- Rugged construction promises long service life.
- Made to comply with international standards.
- Deliver low noise and easy to use.
Technical Specifications & Models
| Model No. | AJK-NDP-2 | AJK-TSP-2 |
|---|---|---|
| Design Type | Dynamic | Static/Passive |
| Cleanlines Level | Class 100 | |
| Internal Dimension | 2x2x2 Ft. | |
| MOC | Stainless steel 304 | |
| Illumination | LED tube light | |
| Air System | Motor-blower with suspension arrangement | - |
| Filters | Pre filter(95%down to 5 micron) HEPA filter (99.97%) protected by SS grills | - |
| Door | Two side doors Glass window SS handles & SS hinges Electromagnetic interlocking system | |
| Standard Accessories | UV light Light indicators for door SS Handles & SS hinges On/ Off Switch for blower | |
| Power Supply | 220 Volts/ 50 Hz | |
| Optional Accessories | MOC SS 316/ 316 L Differential Pressure Gauge DOP Test Port, Flange Test certificates Calibration certificates Mechanical door interlocking Door buzzer UV light hour meter | |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the PASS BOX STATIC & DYNAMIC is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every PASS BOX STATIC & DYNAMIC is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the PASS BOX STATIC & DYNAMIC. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
