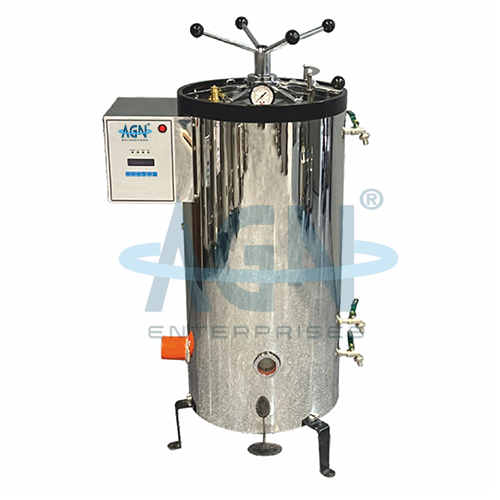

Product Overview & Key Applications
Construction: Inner chamber, jacket, outer chamber, and support ring made of stainless steel (SS 304). Heater cover, stand, carrier/bucket, and top lid made of thick machined stainless steel. All internal joints argon arc welded, ground, and polished for crevice-free, hygienic operation. Moulded, joint-less silicon rubber gasket for leak-proof sealing. Lid & Safety: Radial locking lid for secure operation. Equipped with pressure gauge, spring-loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker, and water level indicator. Drain valve for easy cleaning. Electrical & Controls: Miniature circuit breaker for mains ON/OFF and control panel safety. Industrial-grade, energy-efficient heaters reduce power consumption. Optional Semi-Automatic Features: Automatic pressure control switch. Automatic low water cut-off system. Microprocessor-based digital temperature indicator/controller with set value, process valve, and digital timer. Optional Fully Automatic Features: Automatic low water cut-off system and pressure control switch. Control: ON/OFF/T.P. PT-100 Pressure Sensor for chamber. User-settable purging range and post-sterilization drying time. User-settable boiler control. High/low alarm buzzer and process end indicator. Pressure display and inbuilt sterilization cycle process. Specifications: Working Pressure: 15–20 PSI Working Temperature: 121–125°C Power Supply: 220–230V AC, 50/60 Hz Pressure Vessel: SS 304 Grade Tested up to: 40 PSI Top Lid: SS 304 Grade Stainless Steel External Wall: SS 304 Grade Stainless Steel Basket: High-Grade Stainless Steel Dimension (inch) 10 × 18 12 × 22 14 × 22 16 × 24 18 × 24 22 × 30 Inner Dimension (mm) 250 × 450 300 × 550 350 × 550 400 × 600 450 × 600 550 × 750 Capacity 22 Liters 40 Liters 50 Liters 78 Liters 98 Liters 180 Liters Heater Load 1.5 KW 2 KW 3 KW 4 KW 4 KW 6 KW
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is VERTICAL TRIPLE WALLED RADIAL LOCKING AUTOCLAVE FULLY S.S compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
