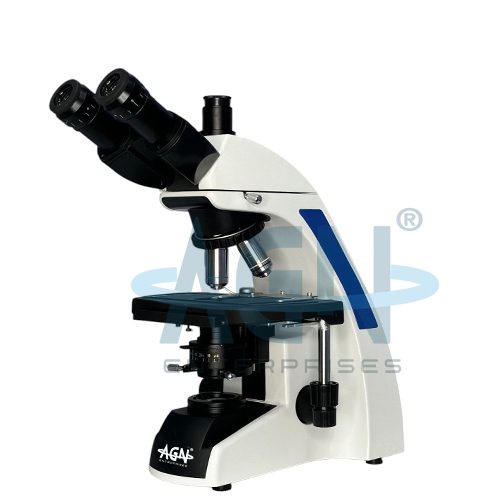

Product Overview & Key Applications
Optical System: High-contrast finite, colour-corrected optical system. Magnification: Visual magnification from 40x to 1000x. Stand: Single-piece aluminium die-cast stand for enhanced stability and user comfort. Observation Head: Siedentopf trinocular head, 30° inclined, 360° rotatable; interpupillary distance 48–75 mm. Eyepieces: Widefield 10x/20 mm with foldable rubber eye guards; antifungal and anti-reflection hard coating; dual diopter adjustment. Nosepiece: Reverse-angle quadruple nosepiece (ball-bearing type) with precise click-stop mechanism. Objectives: QUSP series high-contrast, flat-field DIN achromatic objectives – 4x, 10x, 40x (spring-loaded), 100x (spring-loaded, oil); antifungal and anti-reflection hard coated. Mechanical Stage: Double-plate stage, 220 mm × 160 mm; X/Y travel range 90 mm × 65 mm; low-drive right-hand movement controls; scratch-resistant hard-coated surface; dual specimen holder clips. Condenser: Sub-stage Abbe condenser, N.A. 1.25 with aspheric lens; iris diaphragm with frosted white/blue filter; antifungal and anti-reflection coating; rack-and-pinion movement on stainless steel guides. Focusing Control: Coaxial coarse and fine focusing with smooth gear operation; fine adjustment 0.2 mm/rotation with maximum 2 μm precision. Illumination: 3W LED with adjustable intensity; up to 100,000 hours LED lifespan. Electronics: Universal input 110–240V AC, 50/60 Hz; built-in voltage stabilizer. Package Contents: 5 ft power cable, immersion oil, nylon dust cover, cleaning cloth, and protective styrofoam casing.
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is RESEARCH TRINOCULAR MICROSCOPE compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
