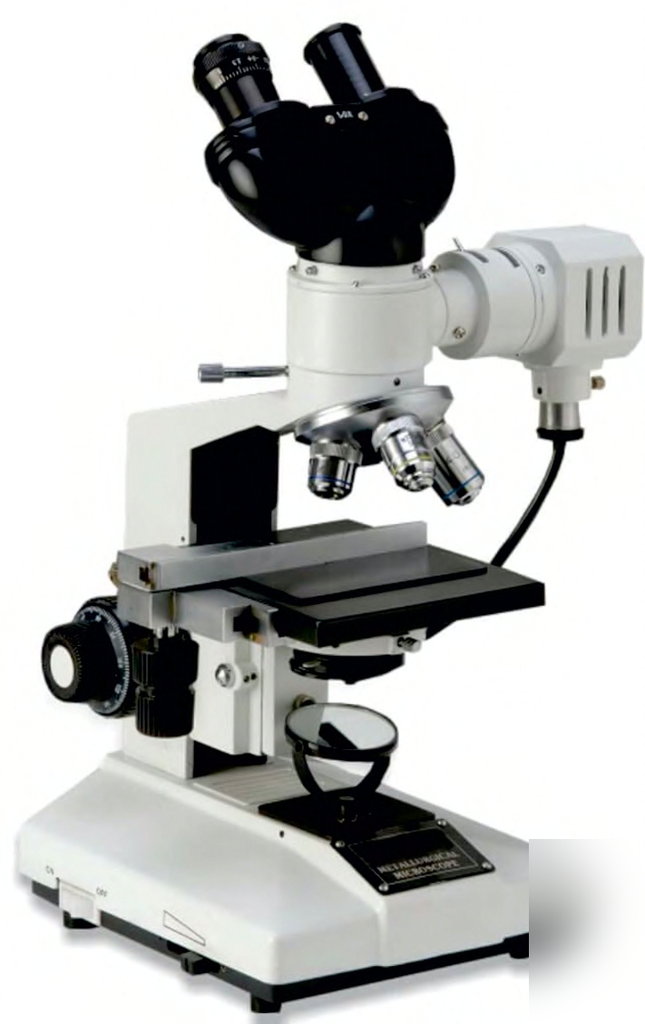

Binocular Polarizing Microscope (NPM Series)
ISO 9001:2015 certified Binocular Polarizing Microscope (NPM Series) manufactured and exported by AJKANT Overseas.
Salient Features
- NPM SERIES
- Industrial Microscopes
- Model No
- Binocular
- Observation Head
Technical Specifications & Models
| Model No | AJK-NPM-2 |
|---|---|
| Binocular Observation Head | - Siedentopf observation head inclined at 30° and rotatable at 360° - It Comes with Diopter adjustment ring on ocupar tube (±5) - Interpupillary distance is from 48mm to 75mm |
| Eyepiece (Anti Fungus) | Wide field eyepiece 10X (Paired) F.O.V. 20mm |
| Objectives (Infinity corrected) | Stain free Plan Achromatic 10X, 20X 40X, 60X |
| Mechanical Body and Pre-Focusing Lever | - Co-axial Focusing System with Pre-focusing Lever & tension Adjustment ring - It Has Reverse Angle Quadruple Nosepiece Revolving On Ball Bearing - It Has Reckless Ceramic Coated Mechanical Stage Size 216mmx150mm - Having Low Positioned Co-axial Controls Coarse Stroke 37.7mm/rotation - Fine Division 0.002mm. Cross Travel 78 X 54mmmm |
| Analyzer | Rotatable analyzer with gradation 0° - 360° |
| Bertrand Lens | Bertrand lens, focus/ center adjustable sliding in/out of optical path |
| Optical Compensator | Lambda Slip (First class red), ¼ lambda slip, Quartz wedge |
| Revolving Round stag | Diameter 160mm, graduated in 1° increments, minimum resolution 6' when e using vernier scale |
| Polarizer | 360° rotatable |
| Sub stage Condenser | Strain free swing condenser N.A 0.9/1.25 with iris diagram and filter holder |
| Illumination System | - Transmitted illuminator 12V/20W Halogen lamp - Brightness adjustable Epi - illuminator 12V/50W Halogen lamp, with iris aperture diaphragm and iris field diagram |
| Standard Accessories | Blue filter, fuse, operating manual, vinyl Dust cover, guarantee card & Styrofoam molded pack |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the Binocular Polarizing Microscope is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every Binocular Polarizing Microscope is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the Binocular Polarizing Microscope. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
