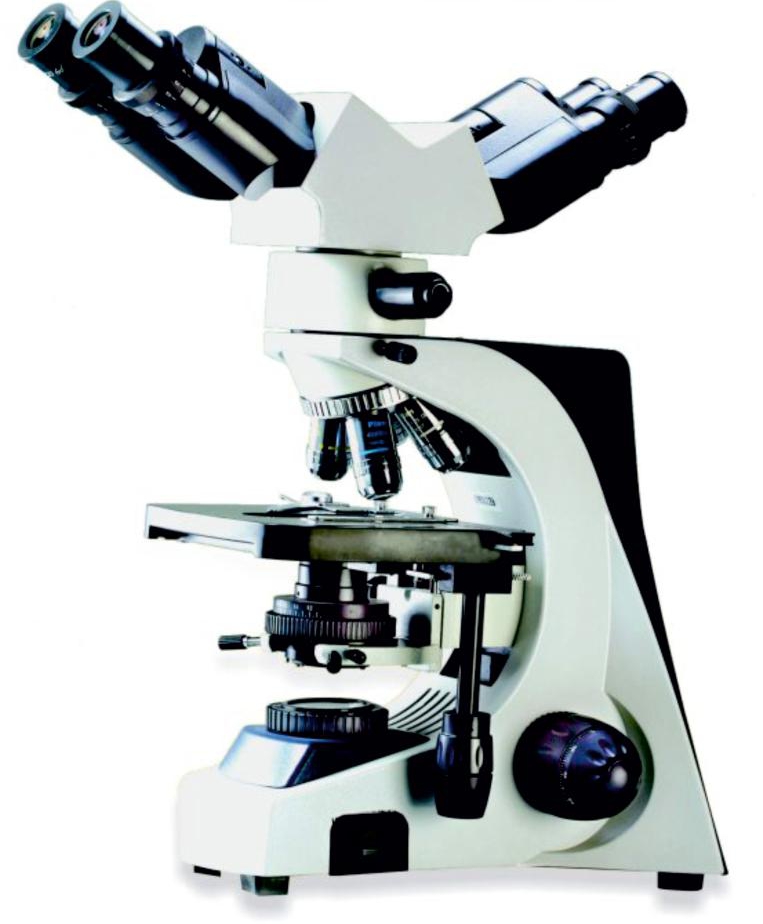

DUAL HEAD BIOLOGICAL
AJKANT Overseas manufactures premium international-grade DUAL HEAD BIOLOGICAL designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | AJK-DHB-2 |
|---|---|
| Mechanical body | - Single mould sturdy stand with anti rust materials - Extended base for better quality |
| Viewing Head | - Dual viewing compensation free binocular head - Inter pupillary distance adjustable between 55-75mm - Diopter adjustment ring on ocular provides correction for eye acuity |
| - Diopter adjustment ring on ocular provides correction f acuity | |
| Indicator | LED curser pointer |
| Eyepiece | Extra wide field eyepiece 10x (Paired) FOV 18mm |
| - Reverse angle quadruple nose piece resolves on ball | |
| Nosepiece | - |
| Objective | 4x, 10x, 40x, CCIS Din Plan Achromatic 100x |
| Mechanical Stage | - Double layers mechanical stage size 180x150mm, supported on ball bearing guide ways and heaving low positioned co-axial control for stage movement - Cross movement 70mm x 50mm |
| Condenser | Sub stage Abbe condenser NA 1.25 having a spherical lens adjustable iris diaphragm and swing out filter holder |
| Focusing | Co-axial focusing control with ball bearing guide ways and large knob, per focusing lever & tension adjusting ring. The slow motion has 1DIV=0.002mm |
| - Incorporates 6V/20W halogen lamp with adjustable diaphragm - power supply input form 220V/110V AC.kolher's illumination | |
| Illumination | - Incorporates 6V/20W halogen lamp with adjustable |
| Standard accessories | Blue filter, dust cover, operating manual, Styro Foam molded pack |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the DUAL HEAD BIOLOGICAL is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every DUAL HEAD BIOLOGICAL is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the DUAL HEAD BIOLOGICAL. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
