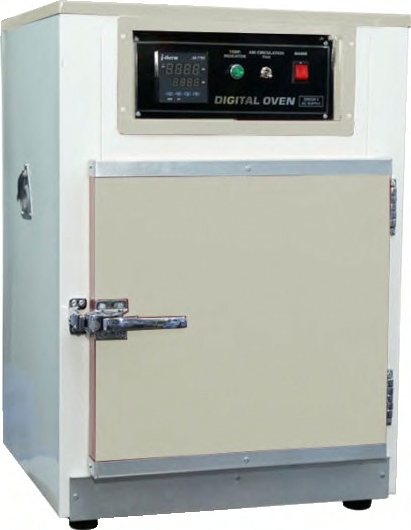

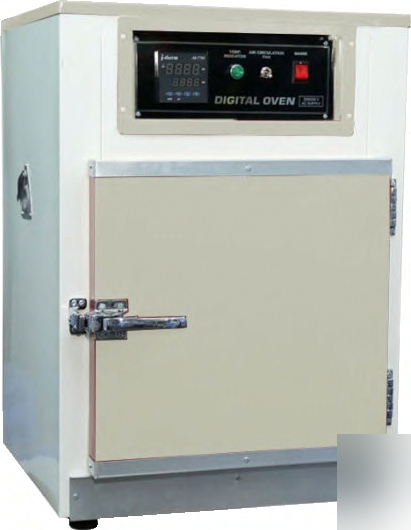

HOT AIR OVEN
Hot Air Oven are designed to generate heat with blower assisted air re-circulation inside the chamber at temperature from ambient+10°C to 150°C, 200°C or 250°C. In general, they are also called forced air circulating oven and widely used to dry glassware, sterilize N95 mask, general instruments and packaging items. They also used in life science, microbiology laboratory, MLSS analysis and many research based applications. There are various industries, where hot air circulating ovens are used such as, chemical and pharmaceutical industries, food and beverage industries, textile, electronic components and steel manufacturing industries etc.
Salient Features
- 40°C to 250°C temperature
- Uniform air circulation across chamber
- Excellent uniformity at high temperature
- Over temperature protection
Technical Specifications & Models
| Model No. | AJK-NTH-12 | AJK-NTH-14 | AJK-NTH-18 | AJK-NTH-24 | AJK-NTH-36 |
|---|---|---|---|---|---|
| Dimensions | 12”X12”X12” | 14”X14”X14” | 18”X18”X18” | 24”X24”X24” | 36”X36”X36” |
| Capacity | 28 L | 45 L | 95 L | 165 L | 225 L |
| Temperature Range | Ambient +10°C to 250°C | ||||
| Temperature Accuracy | ±1°C or better | ||||
| Temperature Sensor | RTD PT100 | ||||
| Temperature Controller | Thermostatic controller / PID temperature controller Display of SV & PV (optional | ||||
| Construction | Double walled | ||||
| Inner Chamber | Stainless steel 304 | ||||
| Exterior | Powder coated steel sheet / stainless steel 304 & 316 grade (optional) | ||||
| Insulation | Ceramic wool insulation | ||||
| Shelves | Chrome plated wire mesh cable trays (removable) | ||||
| Door | Insulated Solid door with spring latch | ||||
| Optional | Port hole for sensors and data monitoring, digital timer 99 hours 99 minutes, Toughened glass window, EUROTHERM controller. Caster Wheels with lock | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the HOT AIR OVEN is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every HOT AIR OVEN is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the HOT AIR OVEN. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
