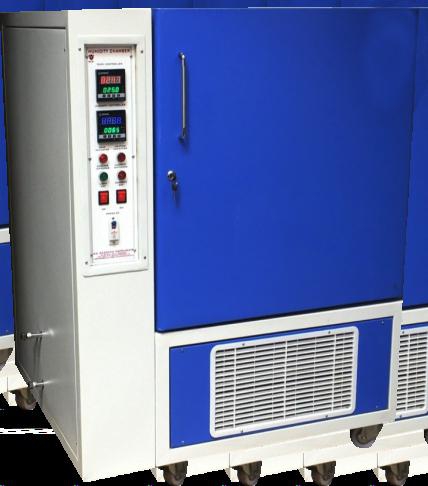

HUMIDITY OVENS & CHAMBER
Humidity Ovens are designed for performing tests that need high humidity 90% to 95% RH at Ambient+10°C to 60°C temperature range; these equipment feature combination of laboratory oven with humidity system in one unit. Each unit is made with long service life and easy to use control system with many safety features. These units are available from 100 liters to 500 liters or more capacities at reasonable price in India. We can also customize temperature range, inner chamber dimensions and type of construction as per requirements
Salient Features
- The temperature is generated using ISI marked SS air
- heaters with fins
- Construction of our humidity controlled oven is
- double walled
- Equipped with many safety features such as high and
- low parameter variation alarm.
Technical Specifications & Models
| Model No. | AJK-HON-2 | AJK-HON-4 | AJK-HON-6 | AJK-HON-8 | AJK-HON-10 |
|---|---|---|---|---|---|
| Capacity | 500x400x500 mm | 600x400x700 mm | 600x500x750 mm | 600x900x900 mm6 | 80x680x1070 mm |
| Dimensions | 100 Ltrs | 170 Ltrs | 220 Ltrs | 320 Ltrs | 500 Ltrs |
| Humidity Range | 80% to 98% RH | ||||
| Humidity uniformity | ±3% RH | ||||
| Temperature range | Ambient+10°C to 60°C | ||||
| Temperature uniformity | ±1°C | ||||
| Controller | Thermostatic Controller/Microprocessor based PID controller (Optional) | ||||
| Humidification | SS water tank with immersion heater | ||||
| Heating | SS air heaters with fins | ||||
| Inner chamber | Stainless steel 304 | ||||
| External cabinet | Powder coated GI sheet/ S.S 304 Grade Optional | ||||
| Power supply | 220 Volts 50Hz | ||||
| Safety features | High/low variation alarm, Low water level protection, Over temperature protection | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the HUMIDITY OVENS & CHAMBER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every HUMIDITY OVENS & CHAMBER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the HUMIDITY OVENS & CHAMBER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
