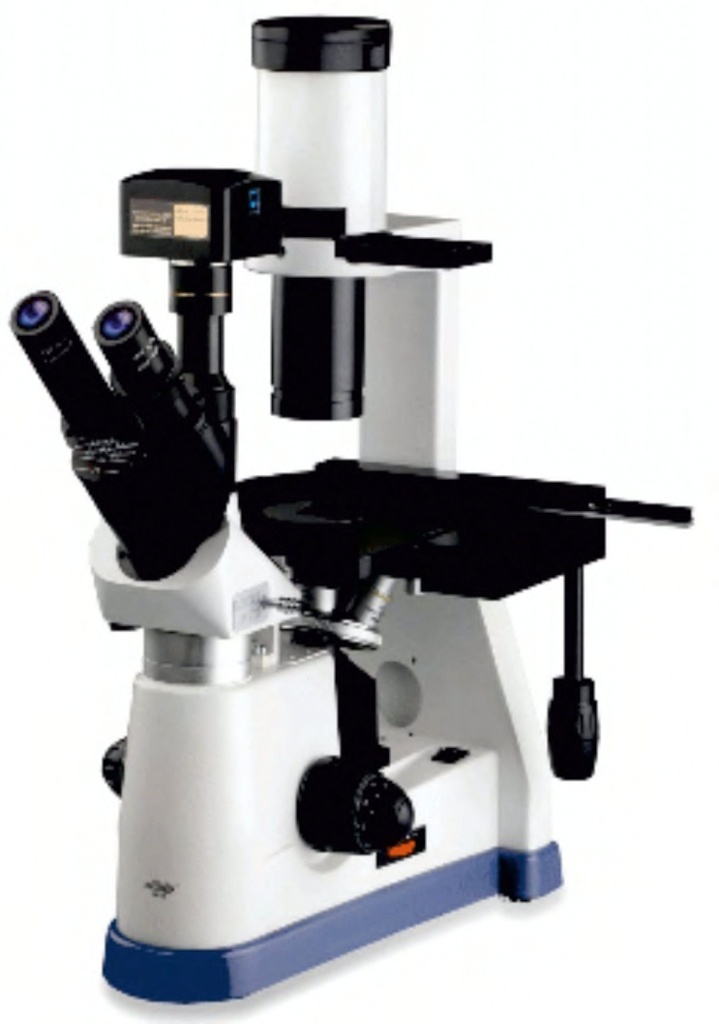

INVERTED TRINOCULAR
AJKANT Overseas manufactures premium international-grade INVERTED TRINOCULAR designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No AJK-ITR-3 | |
|---|---|
| Stand | Single mould sturdy stand with anti rust materials. Extended base for better quality |
| Observation Head | - Siedentopf Trinocular 30o inclined, 360o Interpupillary distance adjustable between 52-75mm - Diopter adjustment ring on ocular provides correction for eye acuity |
| Camera | - Built-in head digital board camera with sensor of 3.1 Mega pixel, Size ½ inch - Resolution: 2048×1536. USB 2.0 output |
| Eyepiece | Extra wide field eyepiece 10x (PAIRED) FOV 18mm |
| Nosepiece | - Reverse angle quadruple nose piece resolves on ball bea |
| Objective | LWD Plan Achromatic 4X/0.1, 10X/0.25WD10mm, 20X/ |
| Stage | - Hard coated mechanical stage of Size 180mmx165mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement - Cross movement 50mmX40mm - Glass insert provided |
| Focusing | - Co-axial focusing control with ball bearing guide ways and large knob, per focusing lever & tension adjusting ring - The slow motion has 1DIV=0.002mm |
| Condenser | Extra long working distance 45mm condenser NA 0.35 having a spherical lens, field diaphragm and pull out filter socket |
| Incorporates 6V/30W Halogen lamp with a spherical collector lens, continuous regulation of the illumination | |
| Illumination | Incorporates 6V/30W Halogen lamp with a spherical c regulation of the illumination |
| Packing | Blue filter, dust cover, operating manual, STYRO FOAM molded pack |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the INVERTED TRINOCULAR is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every INVERTED TRINOCULAR is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the INVERTED TRINOCULAR. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
