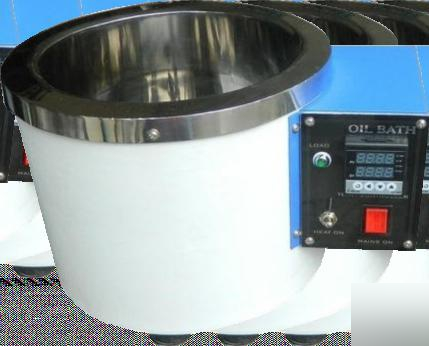

LAB OIL BATH (HIGH TEMP.) WITH STIRRER
Oil bath, as the name explains itself is a type of laboratory equipment which used to maintain a constant temperature for samples or experiments. In this laboratory oil bath sample or material is immersed into the oil which is heated at specific temperature using Temperature controller and immersion heating elements. Laboratory oil bath is used in laboratory research and industry. Chemical reaction, material testing, thermal testing and sample preparations are some of common applications of an oil bath instrument.
Salient Features
- Designed for constant temperature control
- Rugged double wall construction
- Corrosion resistant exterior
- 5 sides glass wool insulation
- Microprocessor PID temperature controller
- High temperature up to 300°C available
Technical Specifications & Models
| Model No. | AJK-OBT-2 | AJK-OBT-4 | AJK-OBT-6 | AJK-OBT-8 | AJK-OBT-12 |
|---|---|---|---|---|---|
| Dimensions | 300 x 175 x 175 mm | 300 x 250 x 175 mm | 375 x 300 x 175 mm | 475 x 300 x 175 mm | 605 x 300 x 175 mm |
| Capacity | 12 Ltrs | 14 Ltrs | 18 Ltrs | 25 Ltrs | 32 Ltrs |
| Temperature range | Ambient+10°C to 200°C | ||||
| Temperature controller | Thermostatic Controller / PID temperature controller (Optional) | ||||
| Timer | Digital timer 99 hours | ||||
| Temperature display | LED display | ||||
| Temperature accuracy | ±1°C or better | ||||
| Temperature sensor | Pt100 | ||||
| Heater | Immersion heaters | ||||
| Construction | Double walled | ||||
| Insulation | Glass wool (5 sides) | ||||
| Inner chamber | Stainless Steel 304 | ||||
| Exterior | Powder Coated M.S / Stainless Steel 304 (Optional) | ||||
| Power Supply | 220 Volts 50 Hz | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the LAB OIL BATH WITH STIRRER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every LAB OIL BATH WITH STIRRER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the LAB OIL BATH WITH STIRRER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
