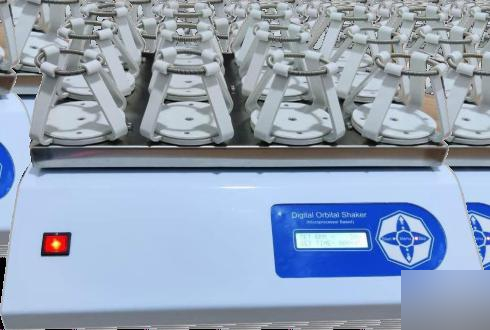

ORBITAL SHAKER
Orbital Shakers are widely used in microbiology, chemistry, immunology, biochemistry and molecular biology for basic mixing applications and bacterial suspensions. These variable speed shakers comprise of shaking platform, speed regulator and timer to adjust duration of orbital motion These shakers are available in different platform sizes to meet demands of shaking small as well as large number of flasks. The shaking mechanism is the heart of the machine.
Salient Features
- It features smooth and jerk less orbital motion
- The motor fitted is heavy duty and brushless
- Light In Weight & made as per European Standards.
- TOS-12
- TOS-18
- TOS-22
- TOS-26
- 12 x 12 Inch
- 18 x 18 Inch
- 22 x 22 Inch
- 26 x 26 Inch
- 16 x 250 ml or
- 16 x 500 ml or
- 9 x 1000 ml or
- 25 x 100 ml
- 9 x 250 ml or
- 9 x 500 ml or
- 4 x 1000 ml or
- 16 x 100 ml
- 25 x 250 ml or
- 25 x 500 ml or
- 16 x 1000 ml or
- 36 x 100 ml
- 36 x 250 ml or
- 36 x 500 ml or
- 25 x 1000 ml or
- 49 x 100 ml
- Stainless steel
- SS or Unbreakable plastic
- Painted MS 20 -
- 235 RPM-5 kg
- 25 mm
- Speed Regulator
Technical Specifications & Models
| Model No. | AJK-TOS-12 | AJK-TOS-18 | AJK-TOS-22 | AJK-TOS-26 |
|---|---|---|---|---|
| Dimensions | 12 x 12 Inch | 18 x 18 Inch | 22 x 22 Inch | 26 x 26 Inch |
| No. of Flasks | 9 x 250 ml or 9 x 500 ml or 4 x 1000 ml or 16 x 100 ml | 16 x 250 ml or 16 x 500 ml or 9 x 1000 ml or 25 x 100 ml | 25 x 250 ml or 25 x 500 ml or 16 x 1000 ml or 36 x 100 ml | 36 x 250 ml or 36 x 500 ml or 25 x 1000 ml or 49 x 100 ml |
| Motion | Orbital | |||
| Platform MOC | Stainless steel | |||
| Clamp MOC | SS or Unbreakable plastic | |||
| Housing | Painted MS 20 - | |||
| RPM | 235 AJK-RPM-5 kg | |||
| Amplitude | 25 mm | |||
| RPM Controller | Speed Regulator | |||
| Shaking mechanism | Brushless motor | |||
| Construction | Heavy iron angled frame | |||
| Power supply | 220 Volts 50Hz | |||
| Optional | RPM LED display, Digital timer 0 ~ 999min | |||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the ORBITAL SHAKER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every ORBITAL SHAKER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the ORBITAL SHAKER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
