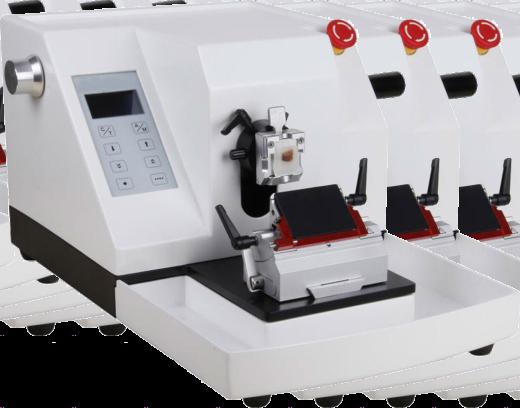

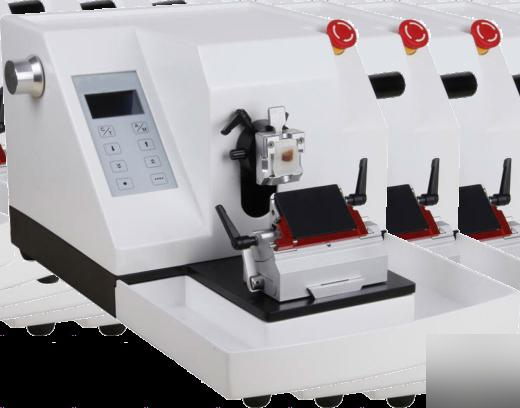

SEMI AUTOMATIC MICROTOME
Semi Automatic Microtome widely used for sectioning (Silicing , Trimming) of biological specimens across histopathlogy, medicine field for Research and Analysis. Semi automatic microtome is a semi-automated unit with manual functionally for user convenience. Designed with built-in actuation system for precise tissue silicing, LCD display to show the slice and trimming thickness. Coarse feed speed directions (in both direction) around 300µm/s & 900µm/s.
Salient Features
- LCD display with feather touch keypad
- C ounter balanced & super smooth
- handwheel
- Specimen orientation with clear zero
- reference point
- Spacious section waste tray
- Sturdy knife holder with angle adjustment scale & locking lever
- Standard accessories
- High profile disposable blades pkt. of 50 nos, 1 Bottle of Lubrication Oil, Rexine Cover,
- Disposable Blade Holder
- 510 x 400 x 350 mm
- Microtomes & Knife Sharpner
Technical Specifications & Models
| Model No. AJK-SET-5 | |
|---|---|
| Section Thickness Range | 0.5µm-100µm |
| Setting Values | 0.5µm-2µm in 0.5µm, 2µm-20µm in 1µm, 20µm-100µm in 5µm increments |
| Object feed | 28 mm |
| Vertical Stroke | 60 mm |
| Specimen Orientation | X-axis and Y-axis : universal 8° & Z-axis: up to 360° |
| Max. Specimen size | 50 X 50 mm |
| Display | LCD Display with Feather Touch Keypad |
| Special Features | Sturdy knife holder with angle adjustment scale & locking lever |
| Standard accessories | High profile disposable blades pkt. of 50 nos, 1 Bottle of Lubrication Oil, Rexine Cover, Disposable Blade Holder |
| Dimension | 510 x 400 x 350 mm |
| Weight | 40 Kg (Approx) |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the SEMI AUTOMATIC MICROTOME is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every SEMI AUTOMATIC MICROTOME is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the SEMI AUTOMATIC MICROTOME. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
