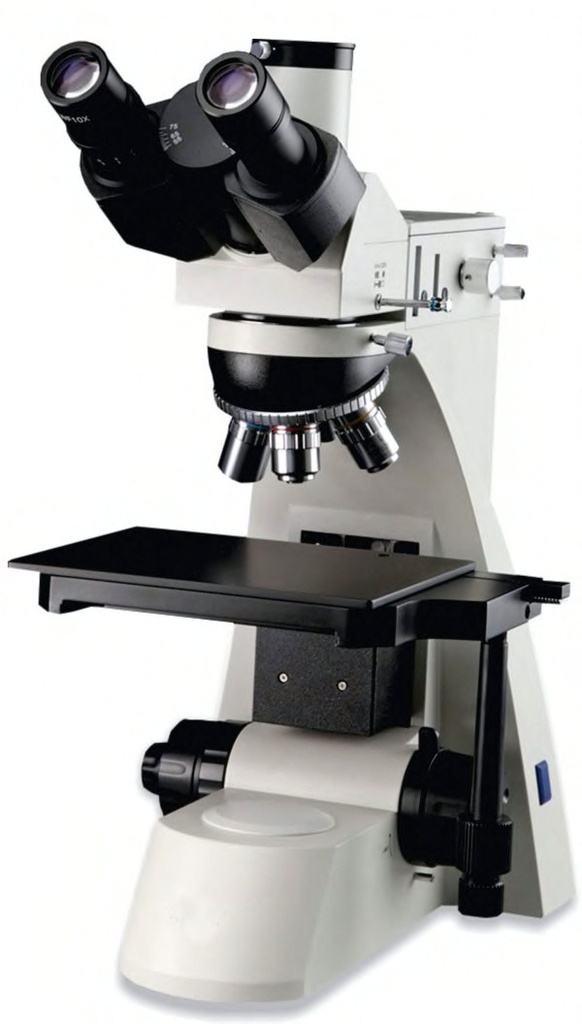

TRINOCULAR UPRIGHT
AJKANT Overseas manufactures premium international-grade TRINOCULAR UPRIGHT designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | AJK-UTM-3 |
|---|---|
| Trinocular Observation Head | - Siedentop observation head inclined at 30° rotatable at 360° - Vertical photo tube for micro photography - Diopter adjustment ring on ocular tube (±5) - Inter pupillary distance from 55mm to 75mm |
| Eyepiece | Wide field 10X (paired) F.O.V. 22mm |
| Objectives (Inanity corrected) | 5X(W.D.18.3 mm),10X(W.D. 8.8 mm), 20X(W.D. 8.6 mm), 50X (S.L.)(W.D. 2.02 mm) |
| Illuminator | - The Epi illuminator has 3W LED Bulb with variable brightness control - Field diaphragm, aperture diaphragm and polarizer - Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi – illuminator |
| Mechanical Body | - Co-axial Focusing System With Large Knobs, Pre-focusing Lever & Tension - Adjustment Ring - Reverse Quintuple Nosepiece On Ball Bearing Mechanical Stage Is 210mm X 140 mm, Moving Range 75mm X 50mm - The Mechanical Stage has Low Positioned Co-axial Controls On Ball Bearing Guide Ways |
| Polarizing Outfit | - Polarizer & Analyzer can be slide in/out of the optical path - Analyzer rotatable at 360° |
| Standard Accessories | 3W LED Bulb, operating manual, dust cover, guarantee card and Styrofoam molded pack |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the TRINOCULAR UPRIGHT is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every TRINOCULAR UPRIGHT is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the TRINOCULAR UPRIGHT. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
