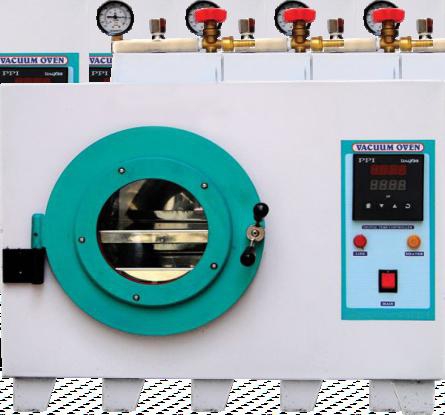

VACUUM OVEN (ROUND)
Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc.
Salient Features
- Designed in rectangular, square and Round
- chamber.
- Made of thick gauge of stainless steel sheets.
- Fitted with imported digital vacuum display and
- controller.
Technical Specifications & Models
| Model No. | AJK-VOT-8 AJK-VOT-12 | AJK-VOT-14 | AJK-VOT-18 AJK-VOT-24 |
|---|---|---|---|
| Chamber Capacity | 8 x 8 x 8" | 12 x 12 x 12" | 14 x 14 x 14" |
| Chamber Dimensions | 8 Ltrs | 28 Ltrs | 45 Ltrs |
| Chamber Design | Rectangular (Round Optional) | ||
| Vacuum Range | Up to -760 mmHg | ||
| Temperature Range | Ambient +5'c to 200'c | ||
| Temperature Controller | Digital PID Controller | ||
| Inner Chamber | Hermetically Welded Stainless Steel 304 Sheet | ||
| Exterior Cabinet | Powder Coated GI Sheet / S.S Optional | ||
| Door | Solid Door With Clamp And Toughened Glass Window | ||
| Shelves | Removable SS Shelves | ||
| Standard Fittings | Mains On/off Switch, Vacuum Pump On/off Switch, Electric Socket For Vacuum Pump. | ||
| Optional Accessories | Digital Vacuum Control Through Solenoid Valves PLC+ HMI Controller With USB Interface Diaphragm Valves For Inert Gas Timer 99 Hours 59 Min Oil Free Vacuum Pump | ||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the VACUUM OVEN is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every VACUUM OVEN is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the VACUUM OVEN. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
