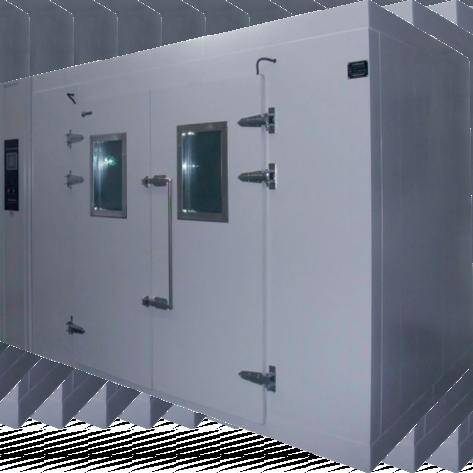

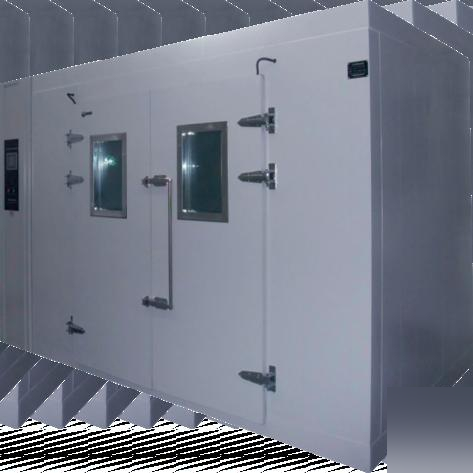

WALK IN INCUBATOR
Walk In Incubators are designed to fulfill needs of large incubation applications in dairy, food and pharmaceutical industries and agriculture research etc. Our walk in incubators are available with temperature range 5°C To 60°C, which is controlled with digital PID controller. As walk in incubators are totally customized and constructed with matched specifications provided by our customers, these units can be accommodated with variety of optional accessories such as digital 24 x 7 weekly timer, data logger with USB interface, humidity system and PLC operation with HMI interface
Salient Features
- sturdy in design and made of thick mil steel powder
- coated from outside
- fitted with audio / visual alarm to alert the users if
- there is any temperature variation
- B espoke Shelving system as per customer
- requirement
Technical Specifications & Models
| Model No. | AJK-WINT-33 | AJK-WINT-45 | AJK-WINT-80 | AJK-WINT-125 | AJK-WINT-187 | AJK-WINT-270 |
|---|---|---|---|---|---|---|
| Dimensions | 1.3 x1.3 x 2.0 | 1.5 x 1.5 x 2.0 | 2.0 x 2.0 x 2.0 | 2.5 x 2.5 x 2.0 | 2.5 x 3.0 x 2.5 | 3.0 x 3.0 x 3.0 |
| Volume (Liters) | 3375 | 4500 | 8000 | 12500 | 18750 | 27000 |
| Temperature Range | 5°C To 60°C | |||||
| Temperature controller | Digital PID controller | |||||
| Interior chamber | Stainless Steel 304 | |||||
| Exterior | Powder coated MS / S.S 304 Optional | |||||
| Illumination | Fluorescent Light | |||||
| Heating system | SS tubular heaters | |||||
| Cooling system | CFC free refrigeration system | |||||
| Shelves | Stainless steel / Chrome plated wire | |||||
| Safety | Audio / visual alarms for temperature variation | |||||
| Optional | Stainless steel exterior, 2 4x7 weekly digital timer, P LC & HMI interface, Data logger with USB interface, Humidity system, IQ, OQ & PQ documents | |||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the WALK IN INCUBATOR is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every WALK IN INCUBATOR is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the WALK IN INCUBATOR. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
