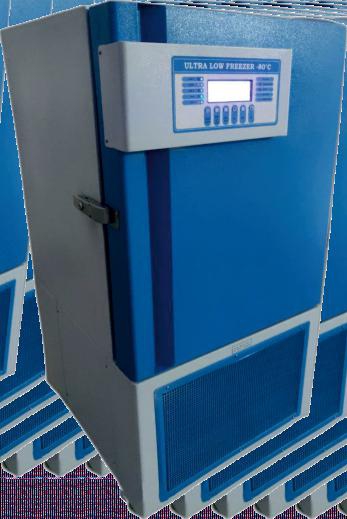

-40ºDEEP FREEZER
These minus 40 degree deep freezers are available in upright (vertical) shape and ideal for biomedical applications including blood plasma storage and other specimen that require extreme low temperature -30°C or -40°C. These units can be made in horizontal designs as well as per the requirement of the customer. A various amount of extra features are given in these units to make them much more efficient and easy to use.
Salient Features
- Ÿ-10°C to -40°C temperature range
- ŸVertical / Horizontal design available
- ŸData recording with USB interface
- ŸVarious types of safety alarms
- Inner and outer solid doors
Technical Specifications & Models
| Model No. | AJK-DF-403 | AJK-DF-404 | AJK-DF-405 | AJK-DF-406 | AJK-DF-407 |
|---|---|---|---|---|---|
| Dimensions | 450 x 450 x 600mm | 400 x 500 x 845mm | 600 x 600 x 900mm | 675 x 620 x 1200mm7 | 70 x 760 x 1200mm |
| Capacity | 115 Ltrs | 165 Ltrs | 345 Ltrs | 510 Ltrs | 725 Ltrs |
| Shelves | 2 | 2 | 3 | 4 | 4 |
| Cooling performance | -40°C | ||||
| Temperature range | -10°C to -40°C | ||||
| Temperature Controller | Microprocessor temperature controller | ||||
| Construction | Double walled | ||||
| Interior | Stainless steel 304 | ||||
| Exterior | Powder coated MS / SS 304 Optional | ||||
| Insulation | Thick PUF Insulation | ||||
| Trays | Stainless steel 304 solid trays | ||||
| Safety | Temperature High / Low alarm | ||||
| Optional | - Horizontal / Chest / Top loading design, Door open alarm, Data logger with USB interface, PLC with HMI interface, Battery backup system for controller display | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the -40ºDEEP FREEZER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every -40ºDEEP FREEZER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the -40ºDEEP FREEZER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
