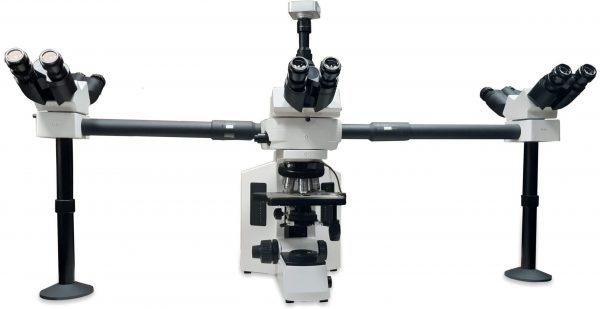

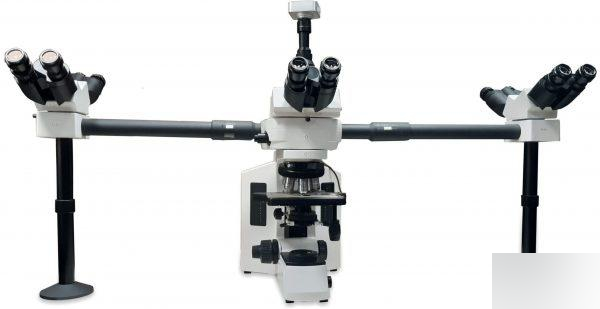

ADVANCE PENTA HEAD
AJKANT Overseas manufactures premium international-grade ADVANCE PENTA HEAD designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No PENTA-T | |
|---|---|
| Mechanical Body | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Trinocular & Binocular Observation Heads (five) | - Sidentop Trinocular head with observation head inclined at 30º rotatable at 360º suitable for camera attachment (One Set) - Sidentop Compensating Binocular observation heads inclined at 30º rotatable at 360º fixed on adjustable stands (Four Set) - Diopter adjustment ring on ocular provides correction for eye acuity - Provided with C mount Adaptor |
| Pointer | Dual Color LED pointer in which Brightness is adjustable |
| Eyepieces | Wide Field Eyepieces 10X (Paired) Field of View (FOV) 22mm (Five Pair) |
| Nosepiece | - Quintuple/Sextuple Reverse angle nosepiece revolves on ball bearing with positive indexing - Soft rubber knurled grip on nosepiece |
| Objectives (infinity Corrected) | CCIS Plan Achromatic 4x / 0.10, 10x/0.25, 20x/0.40, 40x (SL)/ 0.65,100x (SL) Oil/ 1.25 |
| - Mechanical stage Size 185mmX142mm, supported on | |
| Mechanical Stage | - |
| Condenser | Sub stage Abbe condenser N.A. 0.9/1.25 having a spherical lens, adjustable iris diaphragm, swing out filter holder and top lens |
| Focusing | - Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring - The slow motion has 1DIV=0.002mm |
| Illumination | - Incorporates LED LAMP with adjustable brightness and Power supply - Collector in base fitted with iris diaphragm for KOHLER's light system |
| Standard Accessories | Blue filter, operating manual, STYRO FOAM molded box |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the ADVANCE PENTA HEAD is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every ADVANCE PENTA HEAD is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the ADVANCE PENTA HEAD. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
