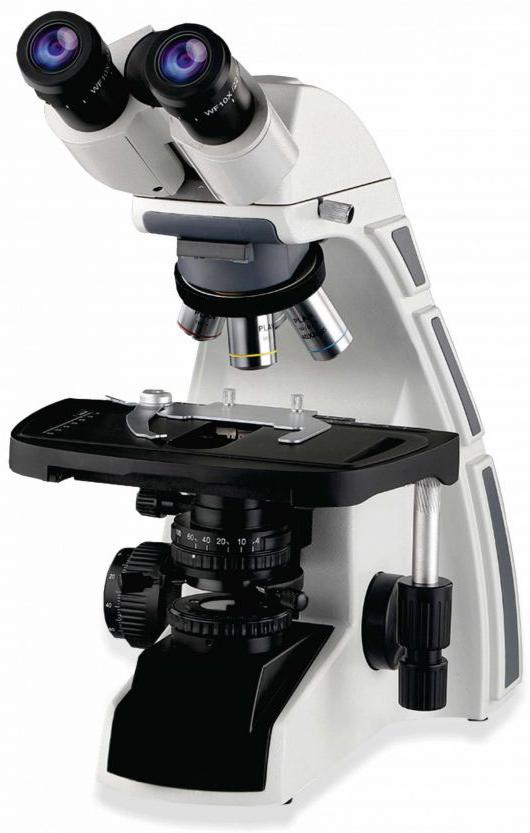

ADVANCE RESEARCH BINOCULAR
AJKANT Overseas manufactures premium international-grade ADVANCE RESEARCH BINOCULAR designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | NT-ULTRA |
|---|---|
| Optical System | Universal Infinity corrected Optical system |
| Stand | - Stable & sturdy C shaped stand with well-contoured modular base - Corrosion resistant paint and heat resistant pads - Extended base for better stability |
| Viewing Head | - Siedentopf Binocular/Trinocular tube, inclined at 30° rotatable through 360° with IPD 55-75 mm - Anti fungus treated |
| Eyepieces | - Focusable Eyepiece W.F 10X paired with eye guards - Anti-fungus treated |
| Nosepiece | Low friction & fully parafocal Reverse angle quadruple Revolving nosepiece (Ball bearing type) with click stop & rubber |
| Objectives | - Semi-Infinity Plan Achromatic lenses - Anti fungus treated objectives: Plan Achromatic 4x/0.10, 10x/0.25, 40x(SL)/0.65, 100x(SL, Oil)/1.25 |
| Focusing | - Ergonomic low position co-axial coarse and fine focusing system on ball bearing guide ways - Tension module adjustment ring provided for Fine Graduation of 2-3 micron |
| Stage | - Ceramic coated Rackless Double layer graduated mechanical rectangular stage - Size 140 x 132mm wire cross travel 75 (X) x 50 (Y) mm on ball bearing co-axial controls spring clip specimen holder |
| Condenser | Movable ABBE condenser, with aspheric lens NA 1.25, daylight blue filter & Iris diaphragm |
| Illumination | Koehler Illumination, Super Bright White LED cold Light, Optional 6V 20W Halogen Lamp |
| Power | Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant |
| Accessories | Styrofoam molded box, dust cover, instruction manual, and fuse |
| Optional Accessories | Upgradeable to Fluorescence attachment with battery backup |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the ADVANCE RESEARCH BINOCULAR is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every ADVANCE RESEARCH BINOCULAR is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the ADVANCE RESEARCH BINOCULAR. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
