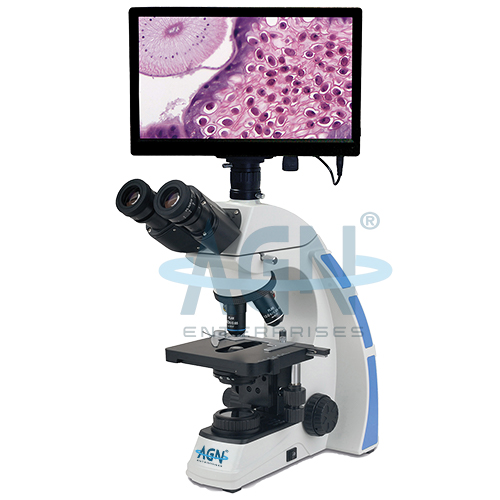

Product Overview & Key Applications
Key Features Display: 12.2″ TFT, IPS Touch Screen, 360˚ Rotatable Camera: Built-in ULTRACAM, 5.0 MP Resolution Software: Pre-loaded Capture & Measurement Software Connectivity: Bluetooth 4.0 Battery: Li-ion Battery, Up to 8 Hours Backup Operating System: Windows 10 Home Memory: 4GB RAM, 64GB eMMC + 64GB microSD Card I/O Ports: USB 3.0 × 1, Mini-HDMI × 1, microSD Slot × 1 Technical Specifications Optical System: High Contrast Infinity Corrected Optical System Observation Head: Binocular / Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Distance 50–75mm, Dioptric Adjustment Nosepiece: Inward Quintuple Revolving Nosepiece, Ball Bearing Type with Precise Click Stops Eyepieces: Wide Field 10x (22mm F.O.V), Anti-fungal & Anti-reflection Hard Coated Mechanical Stage: Rackless, Scratchless Double Plate Stage, Size 180 × 160mm, X/Y Travel Range 75 × 50mm, Division 0.1mm, Low Drive Right-side Movement Objectives: High Contrast Infinity Corrected iQVST Plan Achromatic Objectives 4x (N.A. 0.10, W.D. 25mm) 10x (N.A. 0.25, W.D. 6.7mm) 40x SL (N.A. 0.65, W.D. 0.6mm) 100x SL Oil (N.A. 1.25, W.D. 0.17mm) Condenser: Abbe NA 1.25 with Aspheric Lens, Iris Diaphragm, Frosted White Filter, Antifungal & Anti-reflection Coated, Rack & Pinion Movement on Stainless Steel Guides Focusing Control: Co-axial Coarse & Fine Focusing with Gear System, Fine Adjustment 0.2mm/rotation, 2 Micron Scale Increment Illumination: Q-LED 3.5W / 3V with Variable Control, Up to 100,000 Hours LED Life Electronics: Koehler Universal Input 110V – 240V AC, 50/60Hz Certifications: BIS (ISI), ISO 9001, ISO 13485, EU CE Optional Attachments Monocular Head iQVST Series DIN Infinity Plan Objectives (20x, 60x SL) Wide Field Eyepieces (WF 15x, WF 20x) Pointers & Micrometer Reticules Phase Contrast, Polarizing, Fluorescence & Dark Field Attachments Digital USB Cameras (1.3MP, 3MP, 5MP, 14MP) with In-built Adaptors Digital Cameras & DSLR Cameras with Adaptors Halogen Illumination System (6V, 20W)
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is DIGITAL MICROSCOPE compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
