Product Overview & Key Applications

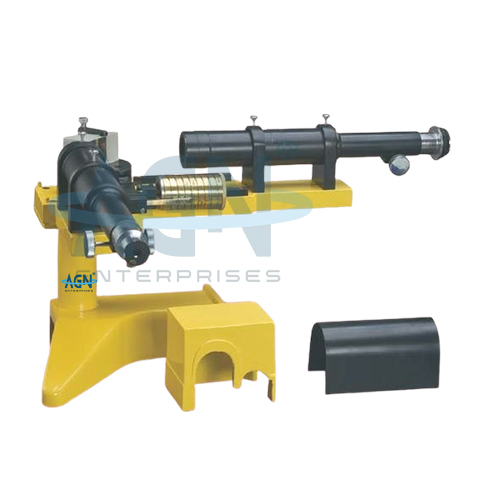

Collimating Tube Material: Brass pipe, O.D. 50 mm, I.D. 44 mm (for fitting collimating lens). Provided with rack & pinion arrangement and circular slit. Slit jaws are optically ground . Fitted with Holfmann’s diaphragm for precise control of light. Telescope Tube Material: Brass pipe, O.D. 50 mm, I.D. 44 mm (for fitting telescope lens). Rack & pinion focussing arrangement for sharp spectral lines. Eyepiece : Ramsden type, 10× magnification, fitted with a conical pointer in the focal plane. Optics Corrected achromatic doublets in collimator and telescope lenses. Doublet: Diameter 44 mm, Focal Length 350 mm (14″). Mechanical Construction Collimator and telescope tubes fitted on machined cast iron blocks , mounted on a rigid cast iron plate. Prism Table : Mounted on cast iron plate. Operated by tangent screw for smooth prism rotation. Designed with sufficient gap to accommodate high-resolution instruments like Fabry–Perot Etalon . Covered with aluminium casting box having two gates (for incident and emergent light paths). Calibration Calibrated drum for visible region (4000 Å – 7000 Å) . Accuracy: ± 5 Å. Finish & Stability Base and cast iron plate painted staple grey . Collimator, telescope, prism table, and drum assembly painted black . Heavy cast iron base ensures rigidity and vibration-free operation. Total Weight : 20 kg.
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is Constant Deviation Spectrograph C.D.S compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
