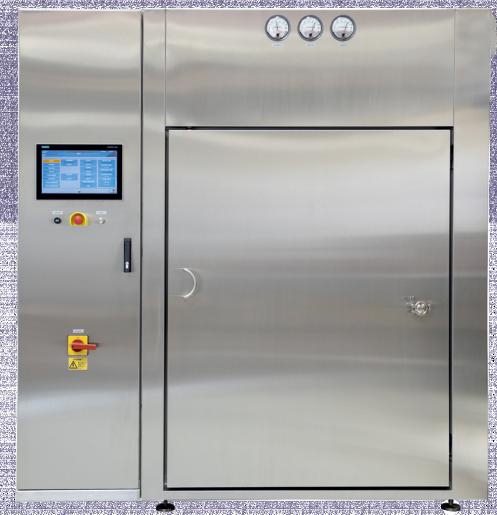

DEPYROGENATION OVEN
Depyrogenation Oven also called Dry Heat Sterilizer is widely used in pharmaceutical industries for dry heat sterilization of pharmaceutical products and components including penicillin bottles, ampoules, aluminum caps, tools and vials glassware etc. This process is often applied on heat-stable oils, ointments and powders and also on heat-stabile components, glassware and metal parts etc. in order to make final product pyrogen free. This process destroys both microbial and pyrogenic contaminants that may present on surface of the products.
Salient Features
- Perfect for class 100 applications
- Stainless steel inner construction
- Meet class 100 standard
- Excellent door tightness
Technical Specifications & Models
| Model No. | AJK-NDO-6 | AJK-NDO-8 | AJK-NDO-10 | AJK-NDO-12 |
|---|---|---|---|---|
| Inner Dimensions mm (W*D*H) | 600*500*750 | 800*800*1000 | 1000*1000*1200 | 1000*1200*1500 |
| Volume | 225 Ltrs | 640 Ltrs | 1200 Ltrs | 1800 Ltrs |
| Overall Dimensions mm (W*D*H) | 1650*900*1750 | 1850*1200*1950 | 2050*1400*2150 | 2050*1600*2450 |
| Exterior | Powder Coated GI Sheet / S.S 304 Grade Optional | |||
| Interior | Stainless Steel 304 Grade | |||
| Heating Power KW | 9 | 15 | 22 | 28 |
| Circulation fan Power | 1.1 KW | 2.2 KW | 3.0 KW | 4.0 KW |
| Fan Power | 0.06 KW | 0.18 KW | 0.18 KW | 0.25 KW |
| Exhaust Fan Power | 0.18 KW | 0.25 KW | 0.37KW | 0.75 KW |
| Design Temperature Range | RT to 300°C | |||
| Cleanliness Level | 100 grade | |||
| Circulation Fan Air Quantity | 2540 m3/h | 2700 m3/h | 2900 m3/h | 3200 m3/h |
| Fan Air Quantity | 300 m3/h | 408 m3/h | 408 m3/h | 408 m3/h |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the DEPYROGENATION OVEN is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every DEPYROGENATION OVEN is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the DEPYROGENATION OVEN. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
