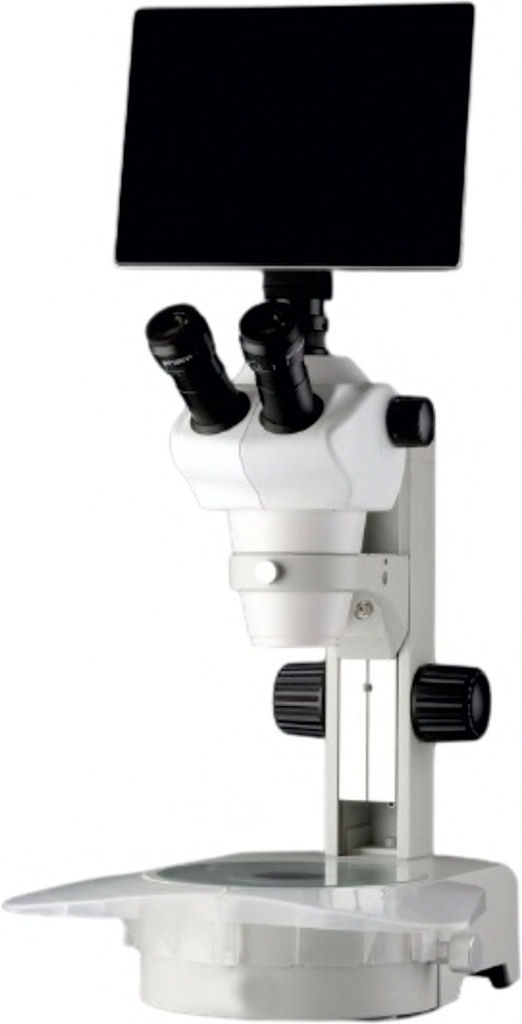

Digital Stereozoom Microscope (STAR-DG Series)
ISO 9001:2015 certified Digital Stereozoom Microscope (STAR-DG Series) manufactured and exported by AJKANT Overseas.
Salient Features
- MICROSCOPE STAR-DG
- SERIES
- Model No
- LCD Observation Head
- - 9” high resolution TFT HD color Display. Built-in HDMI Camera with 3.0
Technical Specifications & Models
| Model No | STAR-DG |
|---|---|
| LCD Observation Head | - 9” high resolution TFT HD color Display. Built-in HDMI Camera with 3.0 Mega pixel resolutions & Pre loaded capture & measurement software - Full Resolution Image capture & Full Resolution video 30 FPS @ 1024x768 No PC or Software is Required - Output ports: one HDMI, one USB 2.0, TF Cam |
| Trinocular Observation Head | Siedentopf Observation head inclined at 45° rotatable at 360° Vertical photo tube for micro photography. Diopter adjustment ring on both ocular tube (±5) - Inter-pupillary distance from 52mm to 76mm |
| Eyepiece (Anti fungus) | Extra Wide field 10X (paired) F.O.V. 22mm |
| Zooming Range & Ratio | Zoom 0.8X to 5.0X with magnification ratio of 1:6: |
| Magnification Range | 8X to 50X |
| 100mm can be extended to 26mm-287mm With d | |
| Working Distance | - |
| Mechanical Body | - Lateral zoom control movement, Clip for holding specimen - Integrated stand and base with built in condenser and adjustable reflecting mirror, Clean glass stage plate, Plastic Hand Rest |
| Illumination System | Incident halogen lamp with adjustable brightness, Transmitted light with halogen lamps - Both lights are regulated with power supply and has separate brightness controls |
| Standard Accessories | Dust cover, Operating manual, guarantee card and Styrofoam molded pack |
| Optional Accessories | Auxiliary lens 2X, 0.5X, Eyepiece 20X/12mm, 15X/16mm |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the Digital Stereozoom Microscope is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every Digital Stereozoom Microscope is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the Digital Stereozoom Microscope. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
