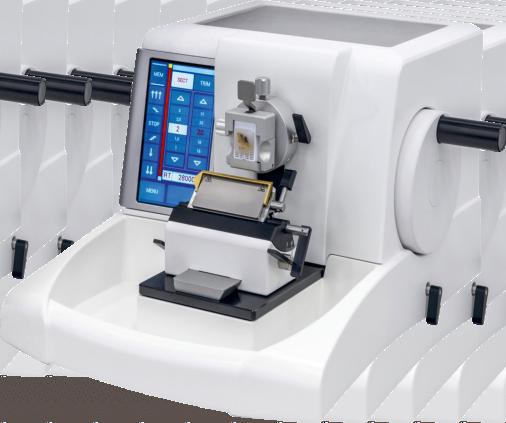

FULLY AUTOMATIC MICROTOME
Microtome is a highly versatile sectioning device suitable for Medical Institutions, Research & Pathological Laboratories. This microtome has special application for cutting thin sections of histo-pathological specimens and also caters to the demands of industries such as Plastic, Leather, Textiles, and Rubber & Fertilizer. Designed with built-in actuation system for precise tissue silicing, LCD display to show the slice and trimming thickness. Coarse feed speed directions (in both direction) around 300µm/s & 900µm/s.
Salient Features
- Rust proof construction.
- LCD Display with Feather Touch Keypad
- Adjustable specimen retraction system
- Motorized Feed & Coarse Drive in two speeds.
Technical Specifications & Models
| Model No. AUTOMAT-3 | |
|---|---|
| Adjustable | 0 – 300 m, in two speeds :300 mm/sec & 900 mm/sec |
| Section thickness setting | 0.5-60µm |
| Minimum value | 0.5µm |
| Vertical Strock | 60-70mm |
| Max. Specimen Size | 50X50mm |
| Retraction | 5-100µm |
| Sectioning speed range | Adjustable |
| Operation | Semi-automatic, Fully automatic |
| Nominal Voltage | 220V, 50Hz/110V, 60Hz |
| Horizontal feed range | 24-28mm and vertical specimen stroke length 65+/-mm |
| Trimming thickness | feed via precision stepping motor for 5 micron to 100 micron |
| Accessories | 1 Bottle of Lubrication Oil, 1 Knife 120mm long, Rexine Cover, Disposable Blade Holder |
| Dimension | 400 x 340 x 280 mm |
| Weight | 35 Kgs (Approx) |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the FULLY AUTOMATIC MICROTOME is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every FULLY AUTOMATIC MICROTOME is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the FULLY AUTOMATIC MICROTOME. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
