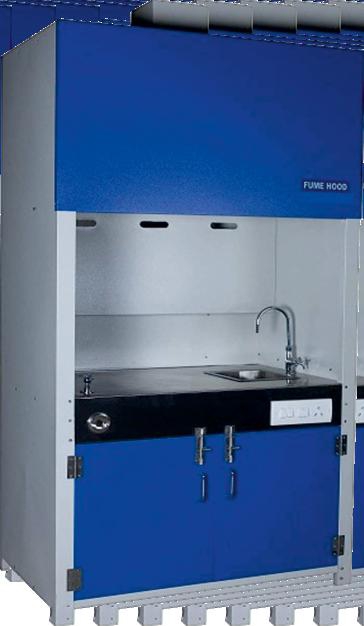

FUME HOOD
Fume Hood is an enclosure which is used to remove fumes and air borne particles at the contamination source. It is a kind of fume ventilation system which prime work is to remove smoke, dust mist and chemical fumes and restrict their entry into laboratory environment. laboratory fume hood comprises of metallic sheet enclosure, steel or marble stone work bench, service fixture and electrical points. For fume exhaust, heavy duty blowers are fitted and remotely connected to the duct. Chemical fume hood, fume cupboard and fume closet are similar names of fume hood.
Salient Features
- Provided with Ventilated Cabinet To Store Chemicals.
- Provided with Centrifugal Blower Assemble Made of
- Direct Drive Motor of Any Branded Make.
- Fitted With Electrical Sockets 2,4 or 6 As Required.
Technical Specifications & Models
| Model No. | AJK-TFH-2 | AJK-TFH-4 | AJK-TFH-5 | AJK-TFH-6 | AJK-TFH-8 |
|---|---|---|---|---|---|
| Size | 2'x2'x2' | 4'x2'x2' | 5'x2'x2' | 6'x2'x2' | 8'x2'x2' |
| Inner Chamber | SS 304/316 | ||||
| Exterior | Power Coated Ms/stainless Steel/gi | ||||
| Work Top | SS 316/jet Black Granite | ||||
| Illumination | Flurorescent Tube Light | ||||
| Blower | Centrifugal Exhaust Blower (direct Drive Motor) | ||||
| Standard Fittings | Water Tap, Sink With Drainage System, Electrical Sockets | ||||
| Optional Accessories | FRP Coating On Inner Walls, Air Foil, Scrubber System, Storage Cabinet, Caster Wheels W/brake Wet And Dry Service Valves, Certification (ashrae 110-1995 / En -14175-2003 Air Flow Monitor Tempearure Indicator Iq/oq/pq | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the FUME HOOD is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every FUME HOOD is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the FUME HOOD. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
