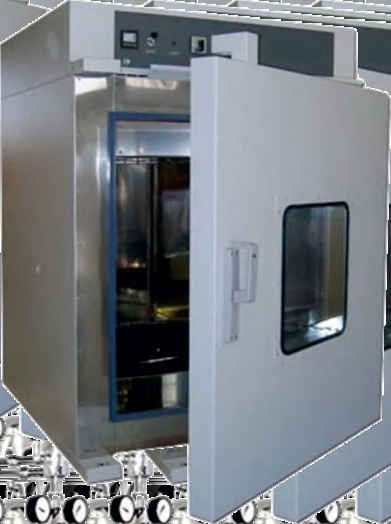

INDUSTRIAL OVEN
Industrial ovens are usually large in size and used for preheating and drying production batch material. An Industrial drying oven is mostly used in industries related to electronics, semiconductor, polyurethane, polymer, rubber and pharmaceutical etc. With digital temperature controller, air blower unit and heaters they generate heating environment required for drying, aging, annealing or curing applications.
Technical Specifications & Models
| Model No. | AJK-IDT-3 | AJK-IDT-6 | AJK-IDT-10 | AJK-IDT-12 | AJK-IDT-20 | AJK-IDT-28 |
|---|---|---|---|---|---|---|
| Capacity | 24 x 24 x 36" | 24 x 36 x 48" | 36 x 36 x 48" | 36 x 36 x 60" | 36 x 48 x 72" | 48 x 48 x 72" |
| Dimensions | 340 Ltrs | 680 Ltrs | 1000 Ltrs | 1275 Ltrs | 2039 Ltrs | 2718 Ltrs |
| Temperature range | Ambient+10°C to 200°C, 300°C, 400°C | |||||
| Inner construction | Stainless steel 304 (20 or 18 gauge) | |||||
| Exterior construction | Powder coated GI sheet/ Stainless Steel Optional | |||||
| Air circulation | Motor driven blower unit | |||||
| Heater | Tubular air heaters | |||||
| Insulation | Glass wool (3 inch) | |||||
| Temperature controller | PID temperature controller, Display of SV & PV | |||||
| Standard fittings | Power cable, Load indicator, Caster wheels with brake | |||||
| Door | Insulated door with sturdy latch | |||||
| Trays | Wire mesh cable trays | |||||
| Optional accessories | Stainless steel exterior, Trolley with racks, PLC based HMI controller, Strip chart temperature recorder, HEPA filtered air inlet | |||||
| Power supply | 220 / 440 volts 50Hz | |||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the INDUSTRIAL OVEN is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every INDUSTRIAL OVEN is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the INDUSTRIAL OVEN. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
