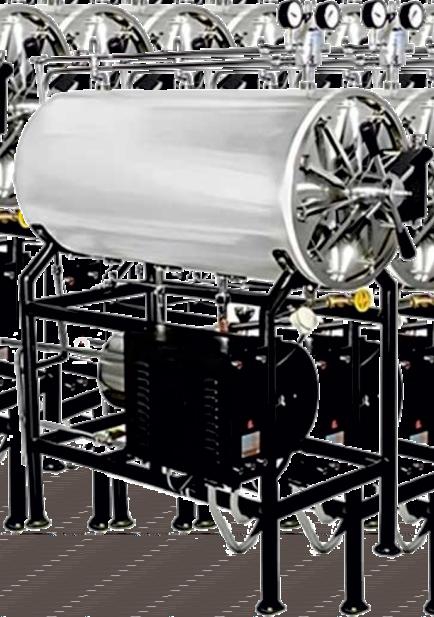

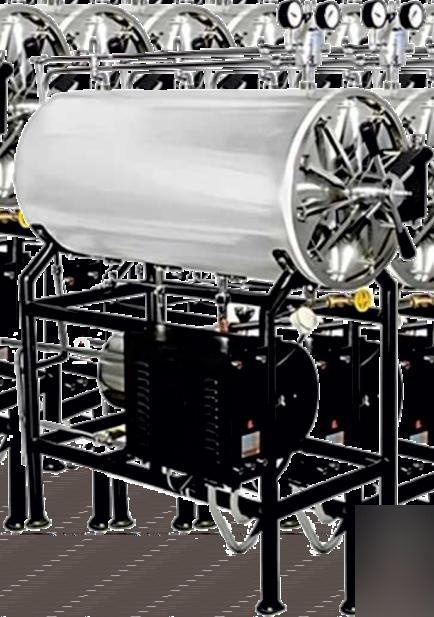

LABORATORY AUTOCLAVE (HORIZONTAL)
These horizontal autoclaves are front loading in design, big in size and designed in cylindrical or rectangular shapes. These high pressure front loading autoclaves play important role in sterilization procedures required in hospitals, pharmaceutical companies, biopharma and microbiology laboratories etc. horizontal autoclave comprises of a sterilization chamber, boiler, piping and fitting, sensors and control panel; all parts and components are jointed and fitted on a stand; this makes a complete floor mounted unit.
Salient Features
- Digital Temperature Indicator Cum Controller
- Quipped With Vacuum Breaker
- Automatic Self Locking System
- Cylindrical Style
- NCH-6
- NCH-8
- NCH-10
- Square Style
- NSH-2
- NSH-4
- NSH-6
- NSH-8
- NSH-10
- Inner Dimension (mm)
- 400 x 600
- 400 x 900
- 400 x 1200
- 500 x 600
- 500 x 600
- 115 Ltr
- 165 Ltr
- 165 Ltr
- 221 Ltr
- Heater Load
- 6 KW
- 9 KW
- 9 KW
- 9 KW
- Gasket
- Made of Joint Less Silicion Rubber
- Sterilizing pressure
- 1.2 to 1.5 kgf/cm2 (15 to 20 psi) at 121°C
- Operating pressure
- From 15 psi to 20 psi
- External Wall
- SS 304 Grade Stainless Steel
- Top Lid
- SS 304 Grade Stainless Steel
- Basket
- SS 304 Grade Stainless Steel
- Electrical Requirement
- 220/230 or 440 volts, 3 phase, 50 Hz AC Supply
- NCH-11
- NCH-12
- Capacity
- 78 Ltr
- 6 KW
- Construction Style
- Square Type (in NSH Series) / Cylindrical Type (in NCH Series)
- Autoclave / Sterilizer
Technical Specifications & Models
| Cylindrical Style | AJK-NCH-6 | AJK-NCH-8 | AJK-NCH-10 | AJK-NCH-11 | AJK-NCH-12 |
|---|---|---|---|---|---|
| Square Style | AJK-NSH-2 | AJK-NSH-4 | AJK-NSH-6 | AJK-NSH-8 | AJK-NSH-10 |
| Inner Dimension (mm) | 400 x 600 | 400 x 900 | 400 x 1200 | 500 x 600 | 500 x 600 |
| Capacity | 78 Ltr | 115 Ltr | 165 Ltr | 165 Ltr | 221 Ltr |
| Heater Load | 6 KW | 6 KW | 9 KW | 9 KW | 9 KW |
| Construction Style | Square Type (in NSH Series) / Cylindrical Type (in NCH Series) | ||||
| Gasket | Made of Joint Less Silicion Rubber | ||||
| Sterilizing pressure | 1.2 to 1.5 kgf/cm2 (15 to 20 psi) at 121°C | ||||
| Operating pressure | From 15 psi to 20 psi | ||||
| External Wall | SS 304 Grade Stainless Steel | ||||
| Top Lid | SS 304 Grade Stainless Steel | ||||
| Basket | SS 304 Grade Stainless Steel | ||||
| Electrical Requirement | 220/230 or 440 volts, 3 phase, 50 Hz AC Supply | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the LABORATORY AUTOCLAVE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every LABORATORY AUTOCLAVE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the LABORATORY AUTOCLAVE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
