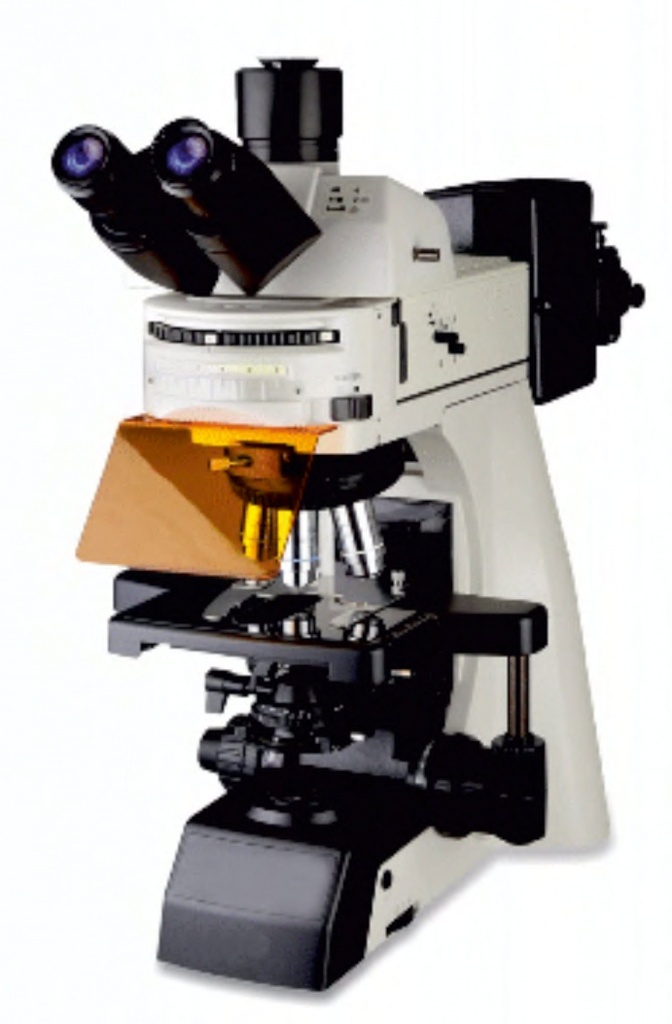

Life Sciences Microscopes
AJKANT Overseas manufactures premium international-grade Life Sciences Microscopes designed for high-performance laboratory applications.
Technical Specifications & Models
| Model No | RFM-ULTIMA |
|---|---|
| Stand | Single mould sturdy stand with anti rust materials. Extended base for better quality |
| Optical System | Infinity corrected optical system |
| Observation Head | - Diopter adjustment ring on ocular provides correction for eye acuity - Anti-fungal siedentopf design trinocular observation tube (butterfly type) inclined at 30° inclined with fixed light path of 50/50 (eyepiece/ camera port) having |
| Eyepiece | interpupillary distance and variable adjusting range Wide Field Eyepiece 10x (Paired) FOV 25 mm anti-fungal |
| Nosepiece | - Reverse angle Quintiple/sextuple nosepiece revolves on ball bearing with positive indexing Soft rubber knurled grip on nosepiece |
| Anti Fungal Plan Achromatic, Plan Achromatic 4X/0.10, 10X/0.25, 20X/0.25, Fluor Plan 40X/0.65 spring, Fluor Plan 100X/1.25 (Spring, oil) | |
| Objective | Anti Fungal Plan Achromatic, Plan Achromatic 4X/0.10, 10 Plan 40X/0.65 spring, Fluor Plan 100X/1.25 (Spring, oil) |
| Stage | - Double Plate Rackless Mechanical stage with Size 187 mm x 167 mm, Supported on ball bearing guide ways and having low positioned co-axial controls for stage movement |
| Focusing | Co-axial and fine focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring with focusing stopper & torque adjustment |
| Condenser | Swing out front lens NA 0.9/1.25 filter holder & IRIS diaphragm with 7 turret position (including Darkfield upto 40x) & built-in aperture iris diaphragm |
| Excitation Filter | Module Set Green(520nm-530nm), Blue (460nm-470nm), Violet (V),Ultra Violet UV |
| Illumination | - EPI Fluorescent Illumination System 3W kohler high brightness LED - Enable selecting monochromatic or bi-chromatic LED for light source, every monochromatic LED wave bend |
| Transmitted Illumination | System Blue filter and ground glass collector for LED illumination and integrated field diaphragm. 3W high brightness white LED, brightness adjustable |
| Florescence Attachment | - High power LED – Reflected LED Fluorescence attachment, free from any alignments and is ready to attach - Light Source Lifetime: Above 30000 hrs., allowing long years of operation without any cost of replaceable lamps |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the Life Sciences Microscopes is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every Life Sciences Microscopes is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the Life Sciences Microscopes. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
