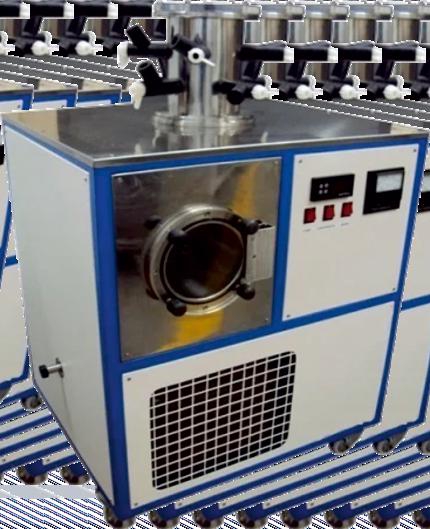

LYPHOLIZER/ DRY FREEZER
lyophilizer, also known as a freeze dryer, is a machine or device used to remove moisture or water from a substance by freeze-drying or sublimation. Freeze-drying is a process where a substance is frozen to a very low temperature and then the moisture or water is removed by sublimation, which is the direct transition of a substance from solid to gas without going through the liquid state. Lyophilizers are commonly used in various fields, including pharmaceuticals, biotechnology, food preservation, and research laboratories.
Salient Features
- Rapid and safe freeze drying of your high quality products
- capable of removing water as well as organic solvents
- Specially designed for food and pharmaceutical research
- and development applications
- Condenser jar and shelves made of SS316
- Electric defrost function
- NLD-2
- NLD-2R
- NLD-4
- NLD-4R
- 0.12m2
- 0.12m2
- 0.18~1.27m2
- 0.18~1.27m2
- Flask
- /
- 8 pcs
- /
- 8 pcs
- 4kg/24h
- 4kg/24h
- 6kg/24h
- 6kg/24h
- 750W
- 750W
- 1400W
- 1400W
- Models
- Total Shelf Area
- Vials load
- Ø12 mm*920
- pcs Ø16
- mm*480 pcs
- Ø22 mm*260
- pcs
- Ø12 mm*1320 pcs
- Ø16 mm*740 pcs
- Ø22 mm*360 pcs
- Ø12 mm*1320 pcs
- Ø16 mm*740 pcs
- Ø22 mm*360 pcs
- Condenser Capacity
- Power
- Optional
- Ø12 mm*920 pcs,
- Ø16 mm*480 pcs
- Ø22 mm*260 pcs
- - Condenser jar and shelves made of Ss316, -80°C condenser, Electric defrost function, Oil mist
- filter, Shelves heating & program segment control (16 programs can be stored), 6 shelves
- instead of 4 pcs, Flask of 100ml, 250 ml and 500 ml
- Sample load capacity
- 1.2 L
- 1.2 L
- 1.2 L ~ 2.7L
- 1.2 L ~ 2.7 L
- Vacuum level
- <10Pa
- Power supply
- 220V/50Hz
- Condenser Temperature
- <-55°C (-80°C optional)
- Shelf size
- ø200 mm*4pcs
- Refrigerator & Freezers
Technical Specifications & Models
| Models | AJK-NLD-2 | AJK-NLD-2R | AJK-NLD-4 | AJK-NLD-4R |
|---|---|---|---|---|
| Total Shelf Area | 0.12m2 | 0.12m2 | 0.18~1.27m2 | 0.18~1.27m2 |
| Shelf size | ø200 mm*4pcs | |||
| Vials load | Ø12 mm*920 pcs, Ø16 mm*480 pcs Ø22 mm*260 pcs | Ø12 mm*920 pcs Ø16 mm*480 pcs | Ø12 mm*1320 pcs Ø16 mm*740 pcs Ø22 mm*360 pcs | Ø12 mm*1320 pcs Ø16 mm*740 pcs Ø22 mm*360 pcs |
| Sample load capacity | 1.2 L | Ø22 mm*260 1.2 L pcs | 1.2 L ~ 2.7L | 1.2 L ~ 2.7 L |
| Flask | / | 8 pcs | / | 8 pcs |
| Condenser Temperature | <-55°C (-80°C optional) | |||
| Vacuum level | <10Pa | |||
| Condenser Capacity | 4kg/24h | 4kg/24h | 6kg/24h | 6kg/24h |
| Power | 750W | 750W | 1400W | 1400W |
| Power supply | 220V/50Hz | |||
| Optional | - Condenser jar and shelves made of Ss316, -80°C condenser, Electric defrost function, Oil mist filter, Shelves heating & program segment control (16 programs can be stored), 6 shelves instead of 4 pcs, Flask of 100ml, 250 ml and 500 ml | |||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the LYPHOLIZER/ DRY FREEZER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every LYPHOLIZER/ DRY FREEZER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the LYPHOLIZER/ DRY FREEZER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
