Product Overview & Key Applications

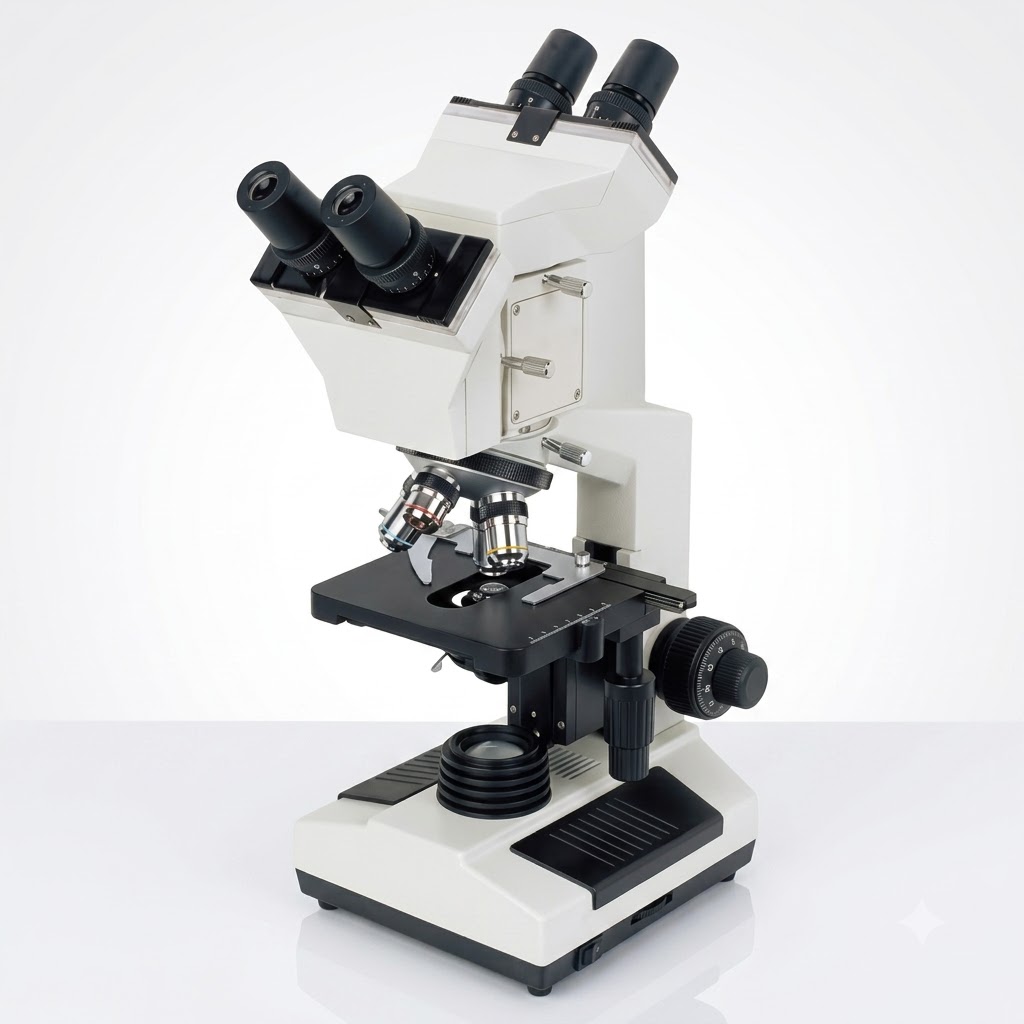

Body: Robust and stable construction ensures long-lasting durability and minimal vibration during use. Objectives: All objectives are antifungal coated with long barrels for superior performance. Available objectives (Plan): 4X NA 0.10 10X NA 0.25 40X NA 0.65 (S.L.) 100X NA 1.25 Oil Immersion (S.L.) Provides brilliantly sharp and flatter images. Eyepieces: High Eye Point, fungal & anti-reflective coated. Extra wide field 10X eyepieces (2 pairs). Dual Viewing Head: Two-piece sliding binocular head, inclined at 45° for comfortable observation. Nosepiece: Quadruple nosepiece with ball-bearing system ensures smooth and precise rotation. Mechanical Stage: Double-layer mechanical stage (140 × 140 mm / 75 × 50 mm). Low-position, co-axial, calibrated double-plate stage with feather-touch movement. Focusing Mechanism: Co-axial coarse and fine focusing using a four-step reduction gear system on ball-bearing guideways. Equipped with a tension adjustment ring and stopper system to prevent slide damage. Condenser: Abbe condenser NA 1.25 with rack & pinion adjustment for precise focusing of light. Illumination: 6V, 20W halogen lamp with adjustable brightness. Built-in field diaphragm ensures correct condenser positioning for optimal illumination. Optional Feature: Trinocular head (Model: PZRM-300 (T)) can be supplied for photo/analysis applications.
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is MULTIVIEWING MICROSCOPE compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
