Product Overview & Key Applications

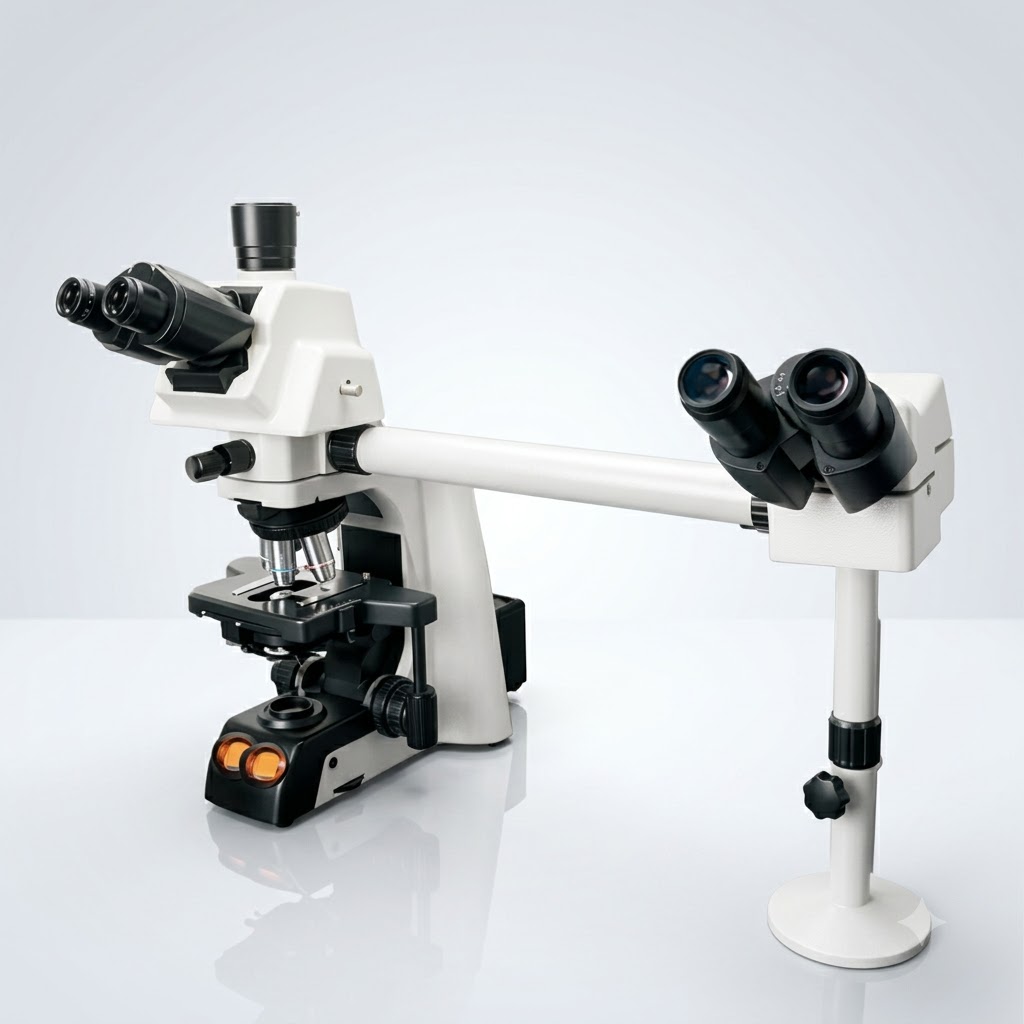

Observation Head: Trinocular Siedentopf head, inclined at 30°, rotatable 360°. Binocular observation head inclined at 30°, fixed on adjustable stands (one set). Vertical focusable phototube for microphotography. Diopter adjustment on both ocular tubes (±5). Interpupillary distance (IPD): 48–75 mm. Optional tilting observation head: 5°–35° angle. Eyepieces: Extra wide-field 10× (paired) with 20 mm F.O.V. Ocular diameter: 30 mm. Anti-fungal treated. Objectives (Anti-mold & Anti-fungal Treated): CCIS Plan Achromatic 4× (N.A. 0.1, W.D. 30 mm) CCIS Plan Achromatic 10× (N.A. 0.25, W.D. 20.1 mm) CCIS Plan Achromatic 20× (N.A. 0.4, W.D. 6.4 mm) – Optional CCIS Plan Achromatic 40× (S.L., N.A. 0.65, W.D. 0.7 mm) CCIS Plan Achromatic 100× Oil (S.L., N.A. 1.25, W.D. 0.2 mm) Mechanical Body & Focusing: Co-axial coarse and fine focusing control with large knob. Pre-focusing lever and tension adjustment ring for precise operation. Pointer: 360° rotatable LED pointer for teaching purposes with intensity control. Stage: Rotatable, rackless, ultra-hard sapphire crystal stage. Mechanical stage size: 190 × 152 mm. Low-positioned co-axial controls on ball-bearing guideways. Double slide capacity. Fine division: 0.001 mm; coarse stroke: 35 mm per rotation. Moving range: 78 × 54 mm. Energy-saving mode with LED light intensity indicator. Built-in base filters: NCB 11, ND-2, ND-8, ND-32. Upper limit stopper included. Substage Condenser: Swing-out front lens, Abbe condenser N.A. 0.9/1.25. Filter holder and iris diaphragm included. Illumination System: Köhler illumination with 3W/12V–100W halogen external illuminator. Aspherical collector lens. Brightness control knob. Optional 3W LED illumination available. Standard Accessories: 12V–100W halogen tungsten bulb. Dust cover and blue filter. Guarantee card, operating manual. Styrofoam molded packaging for safe transport.
Technical Specifications
Frequently Asked Questions (FAQ)
Q1: Is DUAL HEAD MICROSCOPE compliant with international laboratory standards?
Yes, all laboratory instruments supplied by AJKANT Overseas are precision-tested and calibrated under ISO 9001 quality guidelines to ensure high accuracy in research and industrial environments.
Q2: What are the international shipping and export packaging terms?
We provide comprehensive B2B export packaging (heavy-duty wooden crates/shockproof foam cartons) and complete customs documentation for worldwide delivery via air or ocean freight.
Q3: How can I place a bulk order or request OEM customization?
You can click the Contact Us button or submit an inquiry with your custom specifications to receive an official proforma quote from our export support desk.
AJKANT Overseas — Quality & B2B Export Guarantee
High-precision manufacturing, ISO 9001 compliance, custom OEM specifications, shockproof export packaging, and reliable global B2B shipment.
