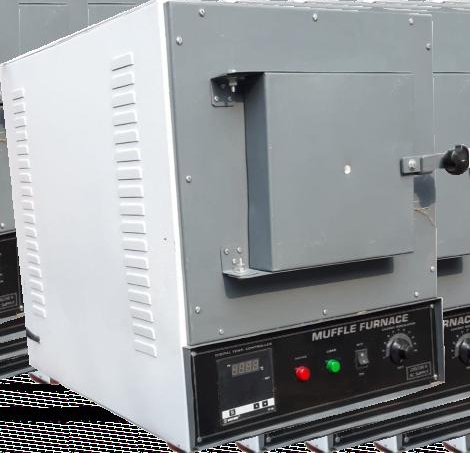

MUFFLE FURNACE (LABORATORY MODEL)
Muffle Furnace is box type heat treatment equipment used to change physical properties of samples at very high temperature; for example 1100°C, 1200°C, 1300°C, 1600°C and 1700°C. These laboratory furnaces are widely used in scientific experiments in physics lab, rice laboratories, steel and paint industries, biotech companies and small industrial production etc. Their major applications include general laboratory testing, annealing, ash determination, coal analysis, leaves carbonization and lime calcination etc.
Salient Features
- Programmable (profile) temperature controller
- Excellent temperature accuracy & uniformity
- Imported heating elements
- Rugged construction for long run
- 900 Series
- MUF-4
- MUF-5
- MUF-6
- MUF-8
- MUF-12
- MUF-24
- 1200 Series
- TMF-4
- TMF-5
- TMF-6
- TMF-8
- TMF-12
- TMF-24
- Heating element
- Silicon Carbide (SiC) rods
- Ceramic fiber board
- Heating chamber MOC
- R
- Type
- Ceramic Fiber Board Zirconia Grade
- Door
- Swing type insulated solid door
- Temperature controller
- Accessories
- Programmable PID controller (Ramp & Dwell)
- High temperature safety gloves, C rucible tong, Operating manual
- Chamber Size
- 4 x 4 x 9
- 5 x 5 x 12
- 6 x 6 x 12
- 8 x 8 x 12
- 12 x 12 x 12
- 12 x 12 x 24
- Capacity
- Lt
- rs
- Lt
- rs
- Lt
- rs
- 12 Ltrs
- 28 Ltrs
- 56 Ltrs
- KANTHAL A1 wire
- U shape MoSi2 heating elements
- Type
- Ceramic fiber board
- B
- Type
- 1900°C ceramic fiber board (imported)
- Max. Temperature
- 900°c (in 900 Series) 1200°c (in 1200 Series) 1800°c (in 1800 Series)
- Exterior MOC
- Powder coated M.S
- Continuous operating
- 800°C, 1100°C, 1700°C
- 1800 Series
- MF8-4
- MF8-5
- MF8-6
- MF8-8
- MF8-12
- MF8-24
- Optional
- Door safety limit switch, External cabinet made of SS304 (GMP model), Vent hole for fume exhaust.
- Laboratory Furnace
Technical Specifications & Models
| 900 Series | AJK-MUF-4 | AJK-MUF-5 | AJK-MUF-6 | AJK-MUF-8 | AJK-MUF-12 | AJK-MUF-24 |
|---|---|---|---|---|---|---|
| 1200 Series | AJK-TMF-4 | AJK-TMF-5 | AJK-TMF-6 | AJK-TMF-8 | AJK-TMF-12 | AJK-TMF-24 |
| 1800 Series | MF8-4 | MF8-5 | MF8-6 | MF8-8 | MF8-12 | MF8-24 |
| Chamber Size | 4 x 4 x 9 | 5 x 5 x 12 | 6 x 6 x 12 | 8 x 8 x 12 | 12 x 12 x 12 | 12 x 12 x 24 |
| Capacity | 2 Lt | 5 Lt | 7 Lt | 12 Ltrs | 28 Ltrs | 56 Ltrs |
| Max. Temperature | rs rs rs 900°c (in 900 Series) 1200°c (in 1200 Series) 1800°c (in 1800 Series) | |||||
| Continuous operating | 800°C, 1100°C, 1700°C | |||||
| Heating element | KANTHAL A1 wire | Silicon Carbide (SiC) rods | U shape MoSi2 heating elements | |||
| Ceramic fiber board | Type | R Type | B Type | |||
| Heating chamber MOC | Ceramic fiber board | Ceramic Fiber Board Zirconia Grade | 1900°C ceramic fiber board (imported) | |||
| Exterior MOC | Powder coated M.S | |||||
| Door | Swing type insulated solid door | |||||
| Temperature controller | Programmable PID controller (Ramp & Dwell) | |||||
| Accessories | High temperature safety gloves, C rucible tong, Operating manual | |||||
| Optional | Door safety limit switch, External cabinet made of SS304 (GMP model), Vent hole for fume exhaust. | |||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the MUFFLE FURNACE is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every MUFFLE FURNACE is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the MUFFLE FURNACE. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
