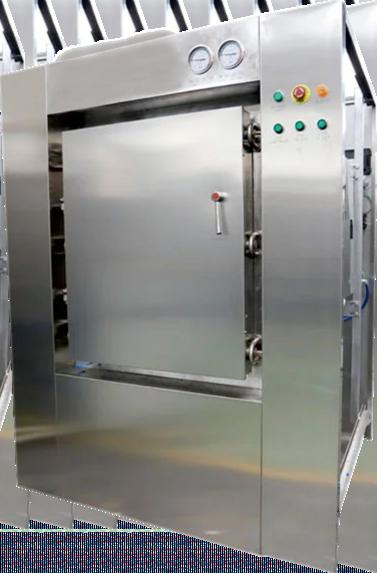

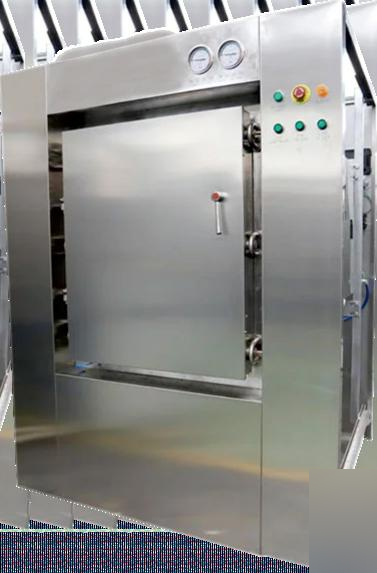

PHARMA GMP STERILIZER
stringent quality sterilization is prime requisite. Every unit confirms GMP requirement and ideal for sterilization of glassware and containers, various culture and media, filters, seals and garments and fabrics etc. Our large steam sterilizers are fully automatic in nature and features motor driven sliding door, pre and post vacuum cycles, color touch screen controller with default program settings and various safety features; in addition, these machines can also be customized to meet specific requirements (URS) of our clients.
Salient Features
- AISI SS316L sterilization chamber
- Shortest batch times and optimum drying
- Follow stringent pharmaceutical standards
- Chamber Dimensions
- 600x600x700
- 600x600x1000
- 680x850x1050
- 750x1100x1500
- 750x1100x3400
- Chamber Capacity
- 250 Ltrs
- 300 Ltrs
- 600 Ltrs
- 1200 Ltrs
- 2400 Ltrs
- Outer Cabinet
- Stainless steel 304
- Max. Working Temp.
- 134°C
- Controller
- Color touch screen HMI controller
- Printer
- Mini printer for instant printout
- Operation Mode
- Automatic / Manual
- Programs
- Optional
- Bowie & Dick test, Vacuum Leak test, Liquid cycle, Customized cycle
- Steam cannot transfer if door not properly sealed, Door cannot open under pressure
- / incomplete cycle, Interlocking system for double doors
- FDA CFR 21 Part 11, Loading trolley, Double door, On-site validation & documentation
Technical Specifications & Models
| Model No. | AJK-NPS-6 | AJK-NPS-7 | AJK-NPS-8 | AJK-NPS-9 | AJK-NPS-10 |
|---|---|---|---|---|---|
| Chamber Dimensions | 600x600x700 | 600x600x1000 | 680x850x1050 | 750x1100x1500 | 750x1100x3400 |
| Chamber Capacity | 250 Ltrs | 300 Ltrs | 600 Ltrs | 1200 Ltrs | 2400 Ltrs |
| Inner Chamber | Stainless steel 316L | ||||
| Outer Cabinet | Stainless steel 304 | ||||
| Max. Working Temp. | 134°C | ||||
| Controller | Color touch screen HMI controller | ||||
| Printer | Mini printer for instant printout | ||||
| Operation Mode | Automatic / Manual | ||||
| Programs | Bowie & Dick test, Vacuum Leak test, Liquid cycle, Customized cycle | ||||
| Alarms | Temperature overshoot, Low temperature, Low vacuum pressure, Low heating rate | ||||
| Safety Features | Steam cannot transfer if door not properly sealed, Door cannot open under pressure / incomplete cycle, Interlocking system for double doors | ||||
| Optional | FDA CFR 21 Part 11, Loading trolley, Double door, On-site validation & documentation | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the PHARMA GMP STERILIZER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every PHARMA GMP STERILIZER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the PHARMA GMP STERILIZER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
