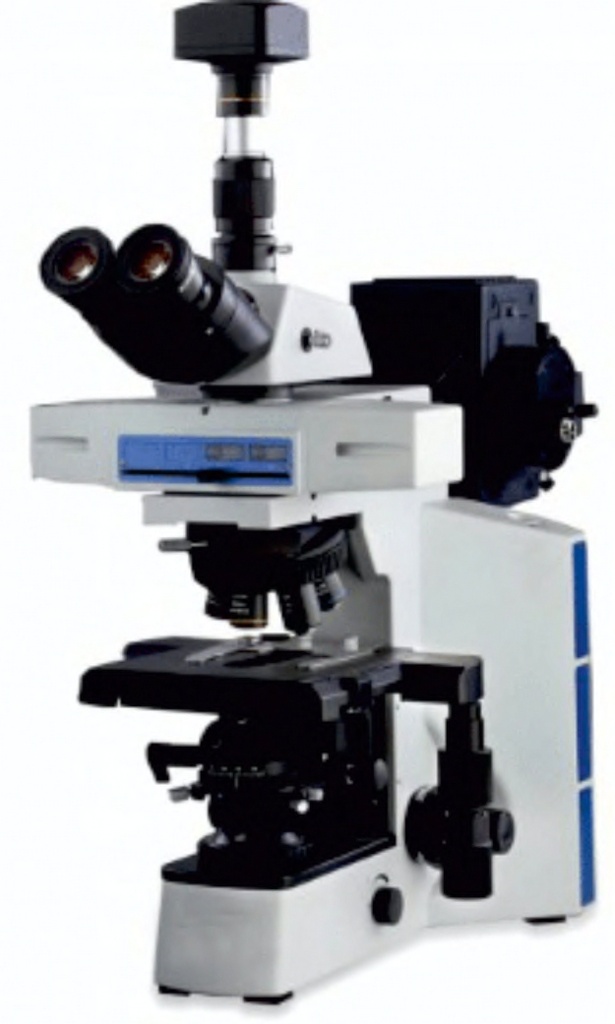

Research Fluorescent Microscope (TRINA-F Series)
ISO 9001:2015 certified Research Fluorescent Microscope (TRINA-F Series) manufactured and exported by AJKANT Overseas.
Salient Features
- TRINA-F SERIES
- Model No
- Trinocular
- Observation Head
- - Siedentopf observation head inclined at 30° rotatable at 360°.Vertical photo
Technical Specifications & Models
| Model No TRINA -F | |
|---|---|
| Trinocular Observation Head | - Siedentopf observation head inclined at 30° rotatable at 360°.Vertical photo tube for micro photography - Diopter adjustment ring on ocular tube(±5) - Inter-pupillary distance from 48mm to 75mm |
| Eyepiece | (Anti fungus) 10X/25 mm with diopter adjustment |
| Objectives | Plan Achromatic 2X, 4X, 10X, 20X, 40X, 100X (Anti Fungus Coated) |
| Mechanical Stage | Double Plate Reckless Mechanical stage is 187mmX168mm Slot for Polarizer and DIC The mechanical stage has low positioned co-axial controls on ball bearing guide ways |
| Nosepiece | Reverse angle sextuple nosepiece on ball bearing |
| Focusing | Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring - Fine division 0.001mm course, per rotation, fine stroke 0.1mm per rotation, moving range: 80mm X 55m - Built in transmitted filter LBD/ND6/ND25 |
| Sub stage Condenser | Swing out front lens, abbe condenser A. 0.9/0.25, filter holder & iris diaphragm |
| Excitation Filters (Optional) | Excitation (400-490nm) standard, G Excitation (510-550nm) standard, UV Excitation (330-385nm) standard, V Excitation (400-410nm) standard |
| Reflected Illumination System | - Sextuple reflected fluorescence illuminator with iris field diaphragm and aperture diaphragm, central adjustable with filter slot and polarizing slot, with fluorescence filter (B/G/UV/V) 100W - Mercury lamp house, filament centre and focus adjustable with reflected mirror, centre and focus adjustable |
| Power | - Digital power controller, wide voltage 100-240 VAC - Imported OSRAM 100W Mercury lamp |
| Illumination | Transmitted Illuminator 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable |
| Standard Accessories | 12V/100W halogen tungsten bulb, Power cord and cedar oil |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the Research Fluorescent Microscope is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every Research Fluorescent Microscope is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the Research Fluorescent Microscope. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
