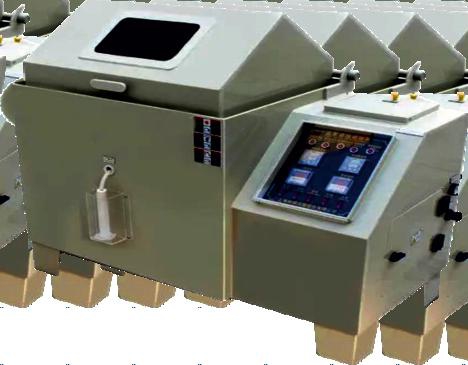

SALT SPRAY TEST CHAMBER
Salt Spray Test Chamber or Salt Fog Test Chambers are made for testing corrosion resistant properties of metal parts, zinc plated nut and bolts, surface coating and paint. In such chambers coated samples are put under artificial corrosion environment inside the chamber to evaluate how suitable the coating surface is to use as protective finish on final products. These test chambers are ruggedly constructed with maintenance friendly design and suitable for testing as per IS / BS / ASTM and DIN standards. Exterior of these machines are made of stainless steel 304, while interior is made of stainless steel 316. To know the price, please email us your query with chamber capacity you require.
Salient Features
- Easy loading and unloading of large samples
- Digital microprocessor based control
- Auto water refill system
- Auto Fog Collection System
- Over temperature alarm
- Low water alarm
- Durable construction
Technical Specifications & Models
| Model No. | AJK-SALX-10 | AJK-SALX-27 | AJK-SALX-60 | AJK-SALX-80 | AJK-SALX-100 |
|---|---|---|---|---|---|
| Dimensions | 600 x 450 x 400 | 900 x 600 x 500 | 1200 x 1000 x 500 | 1600 x 1000 x 500 | 2000 x 1000 x 500 |
| Capacity | 108 Ltrs | 270 Ltrs | 600 Ltrs | 800 Ltrs | 1000 Ltrs |
| Temperature range | 35°C±1°C / 50°C ±1°C | ||||
| Temperature of pressure barrel | 47°C±1°C / 63°C ±1°C | ||||
| Temperature uniformity | ±2°C | ||||
| Temperature fluctuation | ±0.5°C | ||||
| Temperature sensor | Pt100 | ||||
| Humidity range | ≥93% (No Controlled / Display) | ||||
| Controller type | 02 No. PID temperature controllers for chamber and pressure vessel | ||||
| Timer | Digital timer 9999 hours | ||||
| Canopy | Made of Acrylic, M anual lifting | ||||
| Chamber construction | PVC reinforced hard plastic sheets for complete corrosion proof construction | ||||
| Brine tank (reservoir) | 25 liters inbuilt brine tank, Low water level indicator | ||||
| Salt fog fallout rate | 1 ~ 2ml per 80cm2 per hour | ||||
| Spray mode | Continuous or intermittent spray | ||||
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the SALT SPRAY TEST CHAMBER is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every SALT SPRAY TEST CHAMBER is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the SALT SPRAY TEST CHAMBER. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
