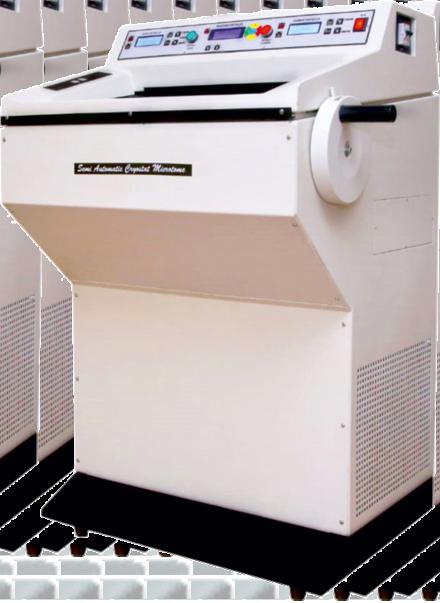

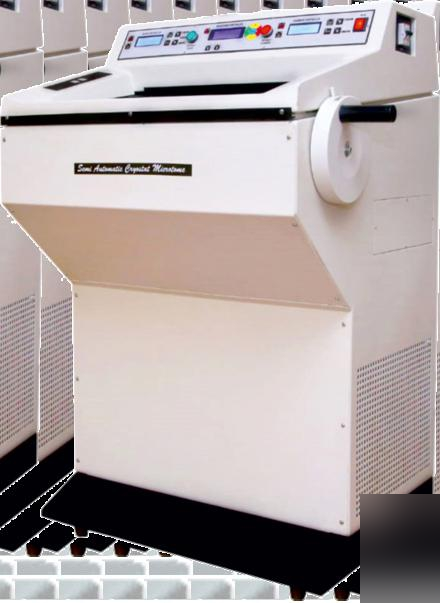

SEMI AUTOMATIC CRYOSTAT MICROTOME
Cryostat, also called freeze microtome, is designed to consistently produce high quality frozen sections of maximum quality. Featured superior capability, it is able to cut tissues at low temperatures (as low as -35 °C) quickly. FS800 is your ideal choice for all research applications and even for advanced clinical cryo-sectioning needs UV for large specimen numbers and varying specimen types with UVC for increased user safety. Specimen Standard type with individually controlled temperature settings on both the cabinet and the object specimen holder.
Salient Features
- Motorized Feed Drive.
- Dual Compressor for rapid freezing.
- Arbitrary Switching between trimming &
- Sectioning.
- Adjustable cutting angle.
- Technical Specifications:
Technical Specifications & Models
| Model No. | |
|---|---|
| Section Thickness Range | 1µm-60µm |
| Setting Values | 1µm-10µm in 1µm, 10µm-20µm in 2µm, 20µm-60µm in 5µm increments |
| Trimming Thickness Range | 10µm-100µm in 10 µm increments |
| Minimum Setting Value | 1µm |
| Vertical stroke | 65mm |
| Specimen horizontal feed | 25mm |
| Motorized coarse feed | 480 µm/sec |
| Specimen Orientation | universal 8o |
| Cryo Chamber Temp | 1 to 30o C Adjustable |
| Cooling Downtime to | -30o C |
| Max. Specimen size | 35x35mm |
| Chamber Defrosting | Programmable or manual |
Need Bulk Export Pricing or Tender Quote?
We manufacture and export custom-configured laboratory setups with ISO 9001:2015 certification and seaworthy packaging.
Request B2B Export QuoteFrequently Asked Questions
Yes, the SEMI AUTOMATIC CRYOSTAT MICROTOME is manufactured by AJKANT Overseas under ISO 9001:2015 certified quality systems and carries CE declaration of conformity for global institutional export.
Standard units operate on AC 220V–240V / 50Hz. For North American and international export orders requiring 110V–120V / 60Hz power, custom configurations are available upon request.
Every SEMI AUTOMATIC CRYOSTAT MICROTOME is wrapped in shockproof bubble insulation, moisture-absorbing silica pouches, heat-sealed polythene vapor barriers, and secured inside ISPM-15 fumigated seaworthy wooden crates.
AJKANT Overseas provides a 1-year comprehensive standard warranty on the SEMI AUTOMATIC CRYOSTAT MICROTOME. Factory replacement parts, heating elements, sensors, and technical guidance are readily supplied.
The listed price serves as a B2B market benchmark. For customized specifications, university project discounts, or tender paperwork, click 'Request B2B Export Quote' or contact export@ajkantoverseas.com.
