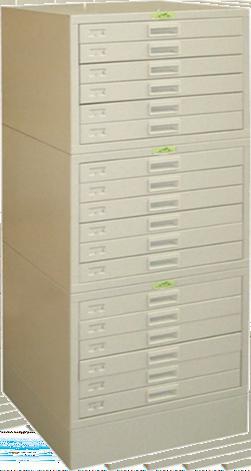

SLIDE STORAGE CABINET
AJKANT Overseas manufactures premium international-grade SLIDE STORAGE CABINET designed for high-performance laboratory applications.
Salient Features
- Slide cabinet for keeping standard 75 x 25 mm glass microscope slides in vertical position. Each of the 10 drawers holds 100
- slides in wooden groves, slides rest on a felt liner. Each drawer has a label holder and the outer door locks for security.
- Slide Storage Cabinet is fabricated out of thick board. Exterior clad in laminated sheet.
- Drawers and slide holding grooves made of seasoned teakwood / aluminum serially numbered. Each drawer has index card
- and puller knobs. An extra drawer has been provided at bottom for keeping index cards etc. Dust proof door has locking
- arrangement.
- Storage Cabinets
- Designed for maximum capacity utilization
- Has backstop to keep slides in upright position.
- Up-to four units can be stacked on top of each other.
- Technical Specifications:
- Metal Series
- SSC-18
- SSC-18A
- SSC-72
- Wooden Series
- WSC-18
- WSC-18A
- WSC-72
- Capacity
- Package Size(W*D*H)
- 570*490*430mm(1-3 layers) 570*490*430mm (4-6 layers) 570*490*430mm (7-9 layers)
- 570*490*560mm (10-12 layers+Base stand)
- Cabinet
- Cold-rolled steel plate (In SSC Series) Hardwood (In WSC Series)
- Drawer
- Specialized slide drawer, ABS slides plate
- Slot
- Made by special mold
- Mark Groove
- Integration forming
- External Size(W*D*H)
- 403*478*1625mm
- Gross Weight
- 110kg
- 18 Drawers
- (3 layers*6 grid, plus a base)
- Loading: 4464 or 8928 glass slides
- 18 Drawers
- (3 layers*6 grid, plus a base)
- Loading: 12000 pcs glass slides
- 72 Drawers
- (12 layers*6 grid, plus a base)
- Loading: 760*72=54720
- Pcs glass slides
Technical Specifications & Models
| Metal Series | AJK-SSC-18 | AJK-SSC-18A | AJK-SSC-72 |
|---|---|---|---|
| Wooden Series | AJK-WSC-18 | AJK-WSC-18A | AJK-WSC-72 |
| Capacity | 18 Drawers (3 layers*6 grid, plus a base) Loading: 4464 or 8928 glass slides | 18 Drawers (3 layers*6 grid, plus a base) Loading: 12000 pcs glass slides | 72 Drawers (12 layers*6 grid, plus a base) Loading: 760*72=54720 Pcs glass slides |
| Package Size(W*D*H) | 570*490*430mm(1-3 layers) 570*490*430mm (4-6 layers) 570*490*430mm (7-9 layers) 570*490*560mm (10-12 layers+Base stand) | ||
| Cabinet | Cold-rolled steel plate (In SSC Series) Hardwood (In WSC Series) | ||
| Drawer | Specialized slide drawer, ABS slides plate | ||
| Slot | Made by special mold | ||
| Mark Groove | Integration forming | ||
| External Size(W*D*H) | 403*478*1625mm | ||
| Gross Weight | 110kg | ||
